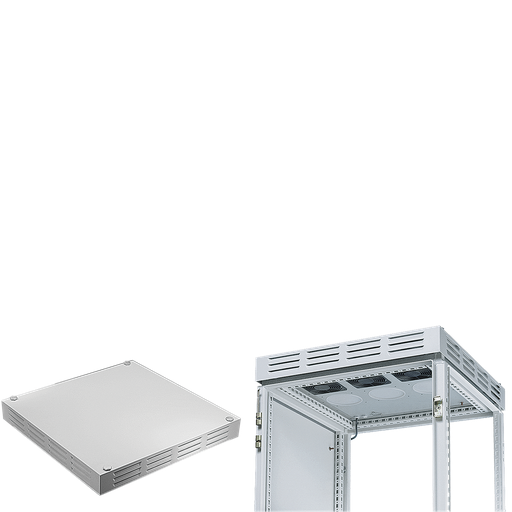

ProLine Vented Top with Fan Tray, fits 600x600mm, Painted, 230V
MFG #PVT3F662
$1,725.00Â /Â E
EACH
EACH
Product Description:
The ProLine Vented Top with Integral Fan Tray provides a cooling/ventilation solution for electronic and networking applications. An integral fan tray with three pre-wired and mounted fans provides up to 200-300 CFM of exhaust. The deeper vented tops (500- through 800-mm deep) have integral fan trays with cutouts for mounting additional fans (see Additional Fans table). Accessory fan kits (consisting of three pre-wired fans) can be installed to provide additional airflow. Unused fan positions are provided with covers to prevent short-circuiting of airflow.
HESCO Part Number
HFPVT3F662
UPC
783510916602
Manufacturer Part Number
PVT3F662
Manufacturer
Hoffman
ProLine Vented Top with Fan Tray, fits 600x600mm, Painted, 230V
MFG #PVT3F662
Product Description:
The ProLine Vented Top with Integral Fan Tray provides a cooling/ventilation solution for electronic and networking applications. An integral fan tray with three pre-wired and mounted fans provides up to 200-300 CFM of exhaust. The deeper vented tops (500- through 800-mm deep) have integral fan trays with cutouts for mounting additional fans (see Additional Fans table). Accessory fan kits (consisting of three pre-wired fans) can be installed to provide additional airflow. Unused fan positions are provided with covers to prevent short-circuiting of airflow.
HESCO Part Number
HFPVT3F662
UPC
783510916602
Manufacturer Part Number
PVT3F662
Manufacturer
Hoffman
$1,725.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Vented Top with Integral Fan Tray are finished with paint over plated surfaces
- Bolts are provided to secure the vented top to frame.
- Designed to be used in place of standard tops
- EMC tops are finished with paint over plated 16-gauge surfaces
Specifications
Product Family | :Â Â | ProLine |
Voltage AC | :Â Â | 230 |
Type | :Â Â | Steel |
Fits Frame Top (B x C) | :Â Â | 600 x 600 |
Modification Services | :Â Â | Yes |
IP Rating | :Â Â | IP55 |
Weight | :Â Â | 29.4 |
Color Code | :Â Â | RAL 7035 |
Finish | :Â Â | Powder Coated |
Thickness (T) | :Â Â | 1.52 |
Works With | :Â Â | NEMA |
Sub Brand | :Â Â | ProLine |
Material | :Â Â | Steel |
Color | :Â Â | LtGray |
- Vented Top with Integral Fan Tray are finished with paint over plated surfaces
- Bolts are provided to secure the vented top to frame.
- Designed to be used in place of standard tops
- EMC tops are finished with paint over plated 16-gauge surfaces
Specifications
Product Family :Â Â ProLine Voltage AC :Â Â 230 Type :Â Â Steel Fits Frame Top (B x C) :Â Â 600 x 600 Modification Services :Â Â Yes IP Rating :Â Â IP55 Weight :Â Â 29.4 Color Code :Â Â RAL 7035 Finish :Â Â Powder Coated Thickness (T) :Â Â 1.52 Works With :Â Â NEMA Sub Brand :Â Â ProLine Material :Â Â Steel Color :Â Â LtGray - Certificate
Certificate - CERT-00140 - NAM-US
Certificate - CE-UKCA-00051_Proline-PC - NAM-US
Certificate - CE-UKCA-00067_Proline-EMI - NAM-US
Certificate - CE-UKCA-00096_Enclosure-19in-Equip - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - SEL-00321 - NAM-CA
