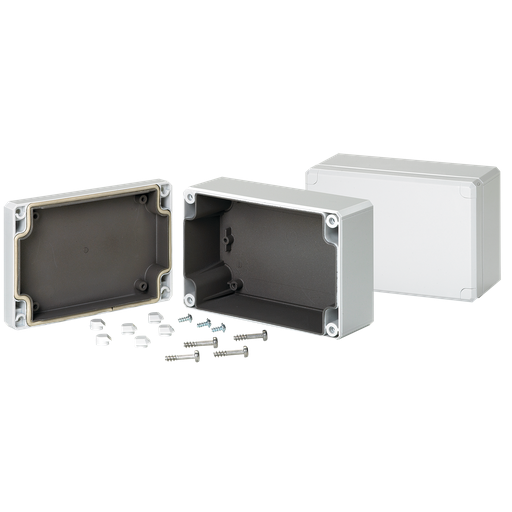

QLine D EMC Enclosure Type 4X, 120x80x55mm, Light Gray, Polycarbonate
MFG #Q1286PCEMC
$87.20Â /Â E
EACH
EACH
Product Description:
QLine D polycarbonate EMC Enclosures provide EMC protection in corrosive environments. This QLine D EMC Enclosure Type 4X, Q1286PCEMC item measures 120x80x55mm with a material of Polycarbonate.
HESCO Part Number
HFQ1286PCEMC
UPC
783510456795
Manufacturer Part Number
Q1286PCEMC
Manufacturer
Hoffman
QLine D EMC Enclosure Type 4X, 120x80x55mm, Light Gray, Polycarbonate
MFG #Q1286PCEMC
Product Description:
QLine D polycarbonate EMC Enclosures provide EMC protection in corrosive environments. This QLine D EMC Enclosure Type 4X, Q1286PCEMC item measures 120x80x55mm with a material of Polycarbonate.
HESCO Part Number
HFQ1286PCEMC
UPC
783510456795
Manufacturer Part Number
Q1286PCEMC
Manufacturer
Hoffman
$87.20Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Specifications
| Height (H) | :Â Â | 120 |
| Width (W) | :Â Â | 80 |
| Depth (D) | :Â Â | 55 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | QLine |
| Finish | :Â Â | Smooth Matte |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 3 |
| Interior Finish | :Â Â | EMC Conductive Coating |
| Internal Dimensions (A x B x C) | :Â Â | 4.47 x 2.89 x 1.93 |
| Mounting (G x H) | :Â Â | 108 x 50 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 0.3 |
| Sub Brand | :Â Â | QLine |
| Material | :Â Â | Polycarbonate |
| Size | :Â Â | 120 x 80 mm |
| Cubic Capacity | :Â Â | 25 cubic in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Specifications
Height (H) :Â Â 120 Width (W) :Â Â 80 Depth (D) :Â Â 55 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â QLine Finish :Â Â Smooth Matte Color :Â Â Light Gray Color Code :Â Â RAL 7035 Thickness (T) :Â Â 3 Interior Finish :Â Â EMC Conductive Coating Internal Dimensions (A x B x C) :Â Â 4.47 x 2.89 x 1.93 Mounting (G x H) :Â Â 108 x 50 Modification Services :Â Â Yes Type Number :Â Â Type 13 IP Rating :Â Â IP66 Weight :Â Â 0.3 Sub Brand :Â Â QLine Material :Â Â Polycarbonate Size :Â Â 120 x 80 mm Cubic Capacity :Â Â 25 cubic in NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Certificate
Certificate - CERT-00187 - NAM-USCertificate - CE-UKCA-00033_Enclosure-Non-Metallic - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00255 - NAM-CA
