Qline I, Type 4X - Q202013ABICC
MFG #Q202013ABICC
$96.40 / E
EACH
EACH
Product Description:

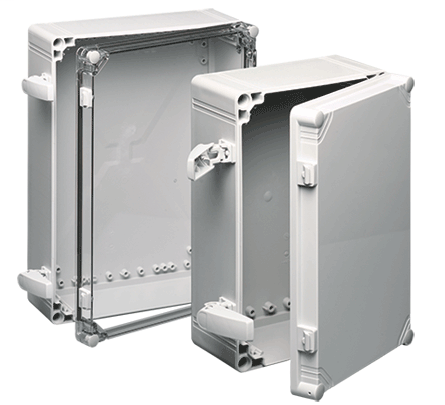

The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
HESCO Part Number
HFQ202013ABICC
UPC
783510182793
Manufacturer Part Number
Q202013ABICC
Manufacturer
Hoffman
Qline I, Type 4X - Q202013ABICC
MFG #Q202013ABICC
Product Description:
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
HESCO Part Number
HFQ202013ABICC
UPC
783510182793
Manufacturer Part Number
Q202013ABICC
Manufacturer
Hoffman
$96.40 / E
EACH
EACH
- Features
- Specifications
- Resources
- Brass Insert Kit
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Cover Screw Kit
- Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
- Extension Rings
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Hardware Kit
- Mounting holes molded directly under cover screws
- H2Omit Vent Drains, Type 4X
- Molded internal pads for mounting optional panels, rails and other components
- Hinge Kit
- Molded internal rails for mounting adjustable-depth panel kit
- Hol-Sealers Non-Metallic Hole Seals
- Screws provided for mounting optional panel
- Mounting Bracket Kit
- Optional extension rings are molded polycarbonate
- Panel Depth Fitting
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.
- A x B x C are internal dimensions.
- Purchase panels and extension rings separately.
Specifications
| Bulletin Number | : | Q41 |
| Material | : | 18279 |
| Model Code | : | 2.06 |
| Ship Wt. Std. Pkg. (lbs) | : | False |
| Catalog Number | : | Q202013ABICC |
| A in. | : | 7.87 |
| B in. | : | 7.87 |
| C in. | : | 5.12 |
| F in. | : | 4.53 |
| Panel Size D x E in. | : | 6.30 x 6.30 |
| R in. | : | 5.51 |
| T in. | : | 4.72 |
| P in. | : | 5.91 |
| Mounting G x H in. | : | 7.09 x 7.09 |
| Y in. | : | 3.94 |
| U in. | : | 4.33 |
| Panel | : | Q2020PI |
| Cover Type | : | Screw Cover |
| Z in. | : | 3.94 |
| Cover Style | : | Clear |
| External Dim's L x W in. | : | 7.87 x 7.87 |
| Extension Ring | : | Q2020EXTI |
| Standards | : | UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66 |
- Brass Insert Kit
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Cover Screw Kit
- Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
- Extension Rings
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Hardware Kit
- Mounting holes molded directly under cover screws
- H2Omit Vent Drains, Type 4X
- Molded internal pads for mounting optional panels, rails and other components
- Hinge Kit
- Molded internal rails for mounting adjustable-depth panel kit
- Hol-Sealers Non-Metallic Hole Seals
- Screws provided for mounting optional panel
- Mounting Bracket Kit
- Optional extension rings are molded polycarbonate
- Panel Depth Fitting
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.
- A x B x C are internal dimensions.
- Purchase panels and extension rings separately.
Specifications
Bulletin Number : Q41 Material : 18279 Model Code : 2.06 Ship Wt. Std. Pkg. (lbs) : False Catalog Number : Q202013ABICC A in. : 7.87 B in. : 7.87 C in. : 5.12 F in. : 4.53 Panel Size D x E in. : 6.30 x 6.30 R in. : 5.51 T in. : 4.72 P in. : 5.91 Mounting G x H in. : 7.09 x 7.09 Y in. : 3.94 U in. : 4.33 Panel : Q2020PI Cover Type : Screw Cover Z in. : 3.94 Cover Style : Clear External Dim's L x W in. : 7.87 x 7.87 Extension Ring : Q2020EXTI Standards : UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66 - Documents
3D STEP CAD2D DXF CAD
Spec Sheet
CertificationsEU CertificationDeclaration of ComplianceUL CertificationCSA Certification
