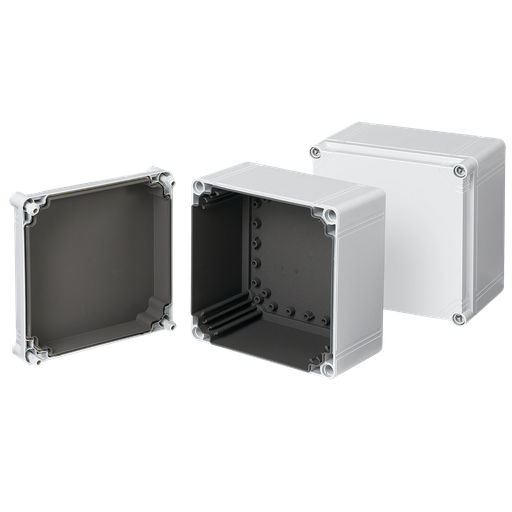

QLine I EMC Enclosure Type 4X, 200x200x123mm, Polycarbonate
MFG #Q202013PCEMC
$345.00Â /Â E
EACH
EACH
Product Description:
QLine I polycarbonate EMC large size Enclosures provide EMC protection in corrosive environments. This QLine I EMC Enclosure Type 4X, Q202013PCEMC item measures 200x200x123mm with a material of Polycarbonate.
HESCO Part Number
HFQ202013PCEMC
UPC
783510457396
Manufacturer Part Number
Q202013PCEMC
Manufacturer
Hoffman
QLine I EMC Enclosure Type 4X, 200x200x123mm, Polycarbonate
MFG #Q202013PCEMC
Product Description:
QLine I polycarbonate EMC large size Enclosures provide EMC protection in corrosive environments. This QLine I EMC Enclosure Type 4X, Q202013PCEMC item measures 200x200x123mm with a material of Polycarbonate.
HESCO Part Number
HFQ202013PCEMC
UPC
783510457396
Manufacturer Part Number
Q202013PCEMC
Manufacturer
Hoffman
$345.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Body is impact-resistant polycarbonate
- Polycarbonate material is easily punched, drilled, filed or sawed
- EMC coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable depth panel kit
- Screws provided for mounting optional panel
- Easily removable covers attached to body with strong, durable polyamide cross-point cover screws
Specifications
| Height (H) | :Â Â | 200 |
| Width (W) | :Â Â | 200 |
| Depth (D) | :Â Â | 123 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | QLine |
| Finish | :Â Â | Smooth Gloss |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 4 |
| Interior Finish | :Â Â | EMC Conductive Coating |
| Internal Dimensions (A x B x C) | :Â Â | 7.40 x 7.40 |
| Mounting (G x H) | :Â Â | 180 x 180 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 2.4 |
| Sub Brand | :Â Â | QLine |
| Material | :Â Â | Polycarbonate |
| Size | :Â Â | 200 x 200 mm |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Body is impact-resistant polycarbonate
- Polycarbonate material is easily punched, drilled, filed or sawed
- EMC coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable depth panel kit
- Screws provided for mounting optional panel
- Easily removable covers attached to body with strong, durable polyamide cross-point cover screws
Specifications
Height (H) :Â Â 200 Width (W) :Â Â 200 Depth (D) :Â Â 123 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â QLine Finish :Â Â Smooth Gloss Color :Â Â Light Gray Color Code :Â Â RAL 7035 Thickness (T) :Â Â 4 Interior Finish :Â Â EMC Conductive Coating Internal Dimensions (A x B x C) :Â Â 7.40 x 7.40 Mounting (G x H) :Â Â 180 x 180 Modification Services :Â Â Yes Type Number :Â Â Type 13 IP Rating :Â Â IP66 Weight :Â Â 2.4 Sub Brand :Â Â QLine Material :Â Â Polycarbonate Size :Â Â 200 x 200 mm NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Downloads
Spec Sheet
Data SheetData Sheet - Spec-00257 - NAM-CA
CertificateCertificate - CERT-00187 - NAM-USCertificate - CE-UKCA-00033_Enclosure-Non-Metallic - NAM-US
