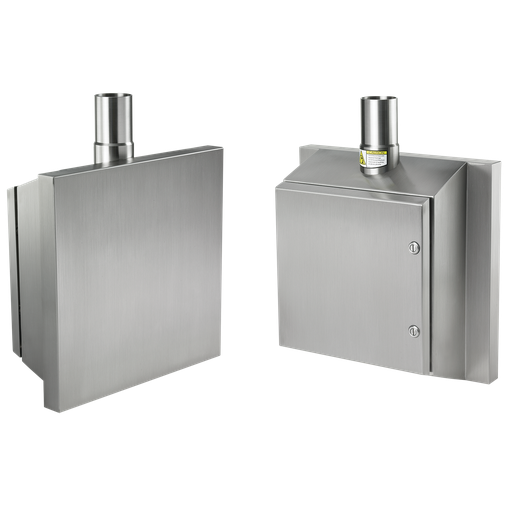

Syspend Sanitary HMI Enclosure Type 4X, 19.69x19.69x5.91, Brushed, SS304
MFG #S505015SS
$2,020.00Â /Â E
EACH
EACH
Product Description:
A stainless HMI enclosure designed for sanitary washdown environments that meets IP69K requirement. This Syspend Sanitary HMI Enclosure Type 4X, S505015SS item measures 19.69x19.69x5.91 inches with a material of SS304 finish Brushed.
HESCO Part Number
HFS505015SS
UPC
783510193331
Manufacturer Part Number
S505015SS
Manufacturer
Hoffman
Syspend Sanitary HMI Enclosure Type 4X, 19.69x19.69x5.91, Brushed, SS304
MFG #S505015SS
Product Description:
A stainless HMI enclosure designed for sanitary washdown environments that meets IP69K requirement. This Syspend Sanitary HMI Enclosure Type 4X, S505015SS item measures 19.69x19.69x5.91 inches with a material of SS304 finish Brushed.
HESCO Part Number
HFS505015SS
UPC
783510193331
Manufacturer Part Number
S505015SS
Manufacturer
Hoffman
$2,020.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Enclosure provides modern, flat-screen monitor-style aesthetics
- Integrated side handles allow for easy repositioning of enclosure
- Fully concealed silicone gasket area provides complete protection in washdown environments
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Enclosure can be flipped for either pendant or pedestal mounting
- Hinges are shielded by door
- Suspension arm adapter included to attach to Syspend Sanitary Suspension System and Syspend VHDS-Motion Arm
- Suspension arm adapter can be installed backwards to provide 40-degree tilt for pedestal applications
- Internal support plate provides extra rigidity for suspension mounting
- H2Omit Vent Drain can be installed on the flat area to provide means of removing condensed moisture from the enclosure
- Seams continuously welded and ground smooth
- Bonding provision on door; grounding stud on body
- Door secured with two stainless steel quarter-turn latches with flush slotted insert
- Panel studs on door fit optional NEMA-style panels
Specifications
| Height (H) | :Â Â | 500 |
| Width (W) | :Â Â | 500 |
| Depth (D) | :Â Â | 150 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Syspend |
| Finish | :Â Â | Brushed #3 |
| Thickness (T) | :Â Â | 1.2 |
| Modification Services | :Â Â | No |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Weight | :Â Â | 34 |
| Sub Brand | :Â Â | Syspend |
| Material | :Â Â | SS Type 304 |
| Size | :Â Â | 19.69x19.69x5.91 in |
- Enclosure provides modern, flat-screen monitor-style aesthetics
- Integrated side handles allow for easy repositioning of enclosure
- Fully concealed silicone gasket area provides complete protection in washdown environments
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Enclosure can be flipped for either pendant or pedestal mounting
- Hinges are shielded by door
- Suspension arm adapter included to attach to Syspend Sanitary Suspension System and Syspend VHDS-Motion Arm
- Suspension arm adapter can be installed backwards to provide 40-degree tilt for pedestal applications
- Internal support plate provides extra rigidity for suspension mounting
- H2Omit Vent Drain can be installed on the flat area to provide means of removing condensed moisture from the enclosure
- Seams continuously welded and ground smooth
- Bonding provision on door; grounding stud on body
- Door secured with two stainless steel quarter-turn latches with flush slotted insert
- Panel studs on door fit optional NEMA-style panels
Specifications
Height (H) :Â Â 500 Width (W) :Â Â 500 Depth (D) :Â Â 150 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â Syspend Finish :Â Â Brushed #3 Thickness (T) :Â Â 1.2 Modification Services :Â Â No Type Number :Â Â Type 3R IP Rating :Â Â IP66 NEMA Rating :Â Â 4X Watertight, corrosion-resistant Weight :Â Â 34 Sub Brand :Â Â Syspend Material :Â Â SS Type 304 Size :Â Â 19.69x19.69x5.91 in - Data Sheet
Data Sheet - Spec-00574 - NAM-CAData Sheet - Spec-01413 - NAM-CA
CertificateCertificate - CERT-00192 - NAM-USCertificate - CERT-00254 - NAM-USCertificate - CE-UKCA-00049_HMI-Syspend-Sanitary - NAM-US
Instruction ManualInstruction Manual - 87959896 - NAM-US
DownloadsSpec Sheet
