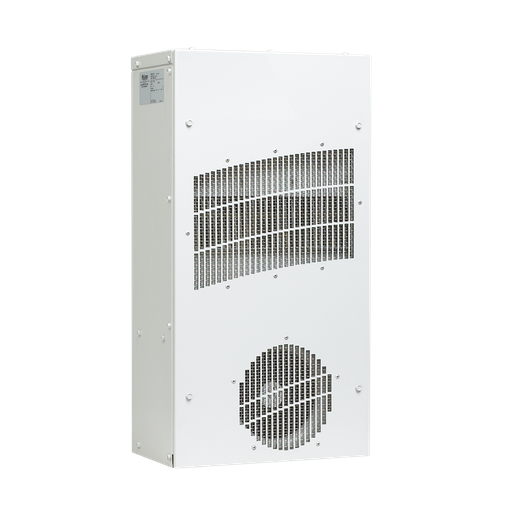

ClimaGuard Air-to-Air Heat Exchanger Outdoor, X23 14w/F 115v
MFG #TX231416100
$2,829.00Â /Â E
EACH
EACH
Product Description:
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX231416100 is rated for X23 14w/F 115v
HESCO Part Number
HFTX231416100
UPC
783510188542
Manufacturer Part Number
TX231416100
Manufacturer
Hoffman
ClimaGuard Air-to-Air Heat Exchanger Outdoor, X23 14w/F 115v
MFG #TX231416100
Product Description:
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX231416100 is rated for X23 14w/F 115v
HESCO Part Number
HFTX231416100
UPC
783510188542
Manufacturer Part Number
TX231416100
Manufacturer
Hoffman
$2,829.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
| Capacity Watts Per °F | :  | 14 |
| Capacity Watts Per °C | :  | 25 |
| Nominal Voltage | :Â Â | 115 |
| Height (H) | :Â Â | 584 |
| Width (W) | :Â Â | 305 |
| Depth (D) | :Â Â | 180 |
| Max Current | :Â Â | 0.6 |
| Operating Temperature | :Â Â | -40 |
| Protection Rating | :Â Â | NEMA Type 4 |
| Product Family | :Â Â | ClimaGuard |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Powder Coated |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| NEMA Rating | :Â Â | 4 Watertight |
| Weight | :Â Â | 32 |
| Voltage AC | :Â Â | 100 |
| Max Watts Per °F | :  | 14 |
| Max Watts Per °C | :  | 25 |
| Thickness (T) | :Â Â | 1.21 |
| Sub Brand | :Â Â | ClimaGuard |
| Temperature Range | :Â Â | -40 to 149 deg F |
| Power Consumption | :Â Â | 14 W per deg F max |
| Housing Material | :Â Â | Mild Steel |
| Mounting | :Â Â | Surface Mounted |
| Dimensions | :Â Â | 23 x 12 x 7.1 in |
Data Sheet
Data Sheet - Spec-00624 - NAM-CA
Certificate
Certificate - CERT-00172 - NAM-US
Certificate - CE-UKCA-00119_HX-Climaguard - NAM-US
Downloads
Spec Sheet
Instruction Manual
Instruction Manual - 10-1008-221 - NAM-US
