Ultrx Enclosure Window Door Type 4X, 1000x800x300mm, Lt Gray, Fiberglass
MFG #UU1008030W
$3,260.00Â /Â E
EACH
EACH
Product Description:

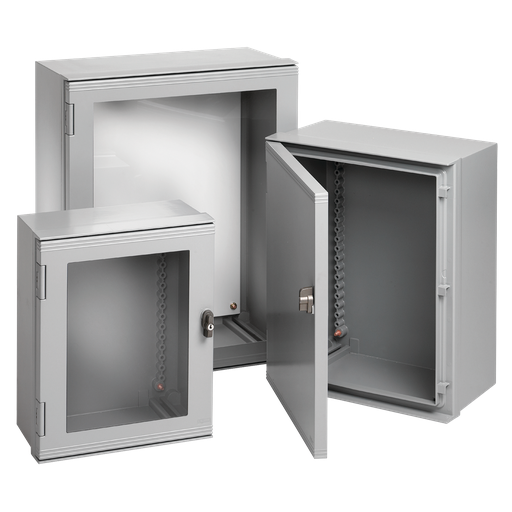

Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Window Door Type 4X, UU1008030W item measures 1000x800x300mm with a material of Fiberglass colored Lt Gray.
HESCO Part Number
HFUU1008030W
UPC
783510358808
Manufacturer Part Number
UU1008030W
Manufacturer
Hoffman
Ultrx Enclosure Window Door Type 4X, 1000x800x300mm, Lt Gray, Fiberglass
MFG #UU1008030W
Product Description:
Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Window Door Type 4X, UU1008030W item measures 1000x800x300mm with a material of Fiberglass colored Lt Gray.
HESCO Part Number
HFUU1008030W
UPC
783510358808
Manufacturer Part Number
UU1008030W
Manufacturer
Hoffman
$3,260.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
- Door hinges are replaceable
- Type 316 stainless steel quarter-turn latch
- Optional keylocking or padlocking handle available
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
Specifications
| Height (H) | :Â Â | 1,025 |
| Width (W) | :Â Â | 825 |
| Depth (D) | :Â Â | 329 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Ultrx |
| Finish | :Â Â | Smooth Matte |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 3.8 |
| Window Size (M x N) | :Â Â | 35.35 x 27.48 |
| Door Type | :Â Â | Window |
| Internal Dimensions (A x B x C) | :Â Â | 39.68 x 31.81 x 12.64 |
| Mounting (G x H) | :Â Â | 768 x 968 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 62 |
| Sub Brand | :Â Â | Ultrx |
| Material | :Â Â | Fiberglass |
| Size | :Â Â | 1025 x 825 mm |
| Cubic Capacity | :Â Â | 15954 cubic in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
