Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt Gray, Steel
MFG #VHD36
$4,183.00Â /Â E
EACH
EACH
Product Description:

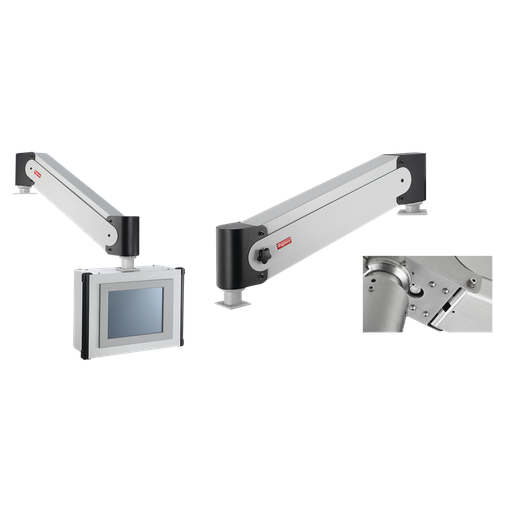

A vertical heavy-duty pendant arm for repositioning HMI enclosure in industrial environments. This Syspend VHD-Motion Arm Type 4, VHD36 item measures 10.18x40.65x4.86 inch with a material of Steel colored Lt Gray.
HESCO Part Number
HFVHD36
UPC
783510185138
Manufacturer Part Number
VHD36
Manufacturer
Hoffman
Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt Gray, Steel
MFG #VHD36
Product Description:
A vertical heavy-duty pendant arm for repositioning HMI enclosure in industrial environments. This Syspend VHD-Motion Arm Type 4, VHD36 item measures 10.18x40.65x4.86 inch with a material of Steel colored Lt Gray.
HESCO Part Number
HFVHD36
UPC
783510185138
Manufacturer Part Number
VHD36
Manufacturer
Hoffman
$4,183.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
- 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
- Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
- Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
- Tension adjustment at front of the arm provides additional fine-tuning of lifting force
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
- Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
- Optional floorpost available
Specifications
| Height (H) | :Â Â | 259 |
| Width (W) | :Â Â | 1,033 |
| Depth (D) | :Â Â | 123 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Syspend |
| Finish | :Â Â | Powder Coated |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Load Capacity | :Â Â | 11 |
| Arm Length | :Â Â | 27 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4 |
| Weight | :Â Â | 54.5 |
| Sub Brand | :Â Â | Syspend |
| Material | :Â Â | Steel |
| Size | :Â Â | 10.18x40.65x4.86 in |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
