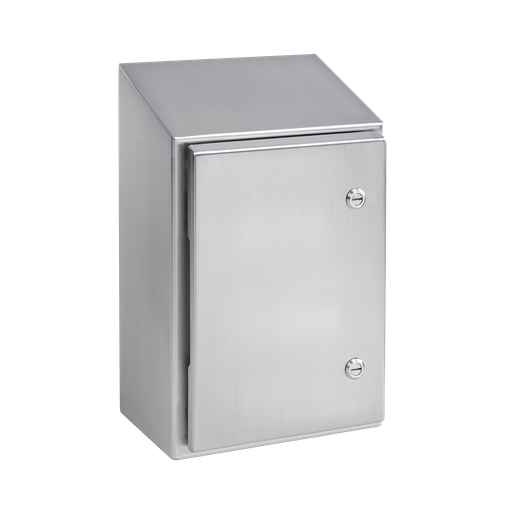

WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, 16x12x8, Brushed, SS 304
MFG #WS161208SS
$1,668.00Â /Â E
EACH
EACH
Product Description:
WaterShed designed for sanitary washdown environments, particularly food and beverage manufacturing. This WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, WS161208SS item measures 16x12x8 in. with a material of SS 304, Brushed.
HESCO Part Number
HFWS161208SS
UPC
783510130886
Manufacturer Part Number
WS161208SS
Manufacturer
Hoffman
WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, 16x12x8, Brushed, SS 304
MFG #WS161208SS
Product Description:
WaterShed designed for sanitary washdown environments, particularly food and beverage manufacturing. This WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, WS161208SS item measures 16x12x8 in. with a material of SS 304, Brushed.
HESCO Part Number
HFWS161208SS
UPC
783510130886
Manufacturer Part Number
WS161208SS
Manufacturer
Hoffman
$1,668.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
- Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
- Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
Specifications
| Height (H) | :Â Â | 406 |
| Width (W) | :Â Â | 305 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | WaterShed |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 2 |
| Latch Quantity | :Â Â | 2 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 25 |
| Sub Brand | :Â Â | WaterShed |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 16.00x12.00x8.00 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
- Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
- Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
Specifications
Height (H) :Â Â 406 Width (W) :Â Â 305 Depth (D) :Â Â 203 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â WaterShed Finish :Â Â Brushed #4 Thickness (T) :Â Â 2 Latch Quantity :Â Â 2 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 25 Sub Brand :Â Â WaterShed Material :Â Â Stainless Steel Size :Â Â 16.00x12.00x8.00 in NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Instruction Manual
Instruction Manual - 87572400 - NAM-US
Data SheetData Sheet - Spec-00040 - NAM-CAData Sheet - Spec-00834 - NAM-USData Sheet - Spec-01415 - NAM-CA
CertificateCertificate - CERT-00193 - NAM-USCertificate - CE-UKCA-00030_Watershed-4X - NAM-US
DownloadsSpec Sheet
