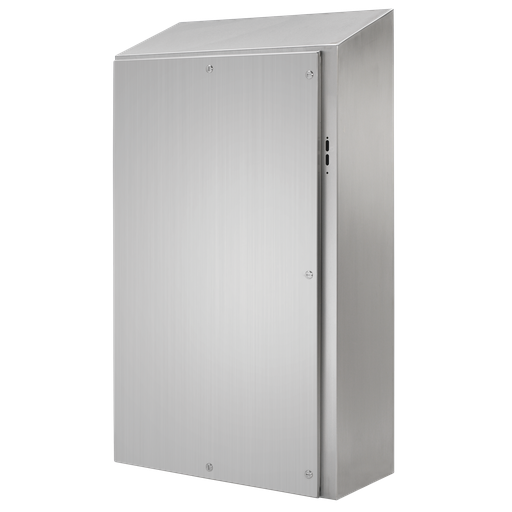

WaterShed Wallmount Disconnect Enclosure Type 4X, 24x25x8, Brushed, SS304
MFG #WS24HS2508SS
$2,958.00Â /Â E
EACH
EACH
Product Description:
WaterShed, Disconnect enclosures are ideal in food and beverage, washdown applications. This WaterShed Wallmount Disconnect Enclosure Type 4X, WS24HS2508SS item measures 24x25x8 inches with material SS304 finish Brushed.
HESCO Part Number
HFWS24HS2508SS
UPC
783510136383
Manufacturer Part Number
WS24HS2508SS
Manufacturer
Hoffman
WaterShed Wallmount Disconnect Enclosure Type 4X, 24x25x8, Brushed, SS304
MFG #WS24HS2508SS
Product Description:
WaterShed, Disconnect enclosures are ideal in food and beverage, washdown applications. This WaterShed Wallmount Disconnect Enclosure Type 4X, WS24HS2508SS item measures 24x25x8 inches with material SS304 finish Brushed.
HESCO Part Number
HFWS24HS2508SS
UPC
783510136383
Manufacturer Part Number
WS24HS2508SS
Manufacturer
Hoffman
$2,958.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system
- Bonding provision on door; grounding stud on body
- Panel studs fit optional NEMA size panels
- Adjustable door interlock bracket fastened to door
Specifications
| Height (H) | :Â Â | 610 |
| Width (W) | :Â Â | 635 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 4X |
| Product Family | :Â Â | WaterShed |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 1.98 |
| Latch Quantity | :Â Â | 4 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 56 |
| Sub Brand | :Â Â | WaterShed |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 24.00x25.00x8.00 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system
- Bonding provision on door; grounding stud on body
- Panel studs fit optional NEMA size panels
- Adjustable door interlock bracket fastened to door
Specifications
Height (H) :Â Â 610 Width (W) :Â Â 635 Depth (D) :Â Â 203 Protection Rating :Â Â NEMA Type 4X Product Family :Â Â WaterShed Finish :Â Â Brushed #4 Thickness (T) :Â Â 1.98 Latch Quantity :Â Â 4 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 56 Sub Brand :Â Â WaterShed Material :Â Â Stainless Steel Size :Â Â 24.00x25.00x8.00 in NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Instruction Manual
Instruction Manual - 87572400 - NAM-US
Data SheetData Sheet - Spec-00042 - NAM-CAData Sheet - Spec-00909 - NAM-US
CertificateCertificate - CERT-00194 - NAM-USCertificate - CE-UKCA-00030_Watershed-4X - NAM-US
DownloadsSpec Sheet
