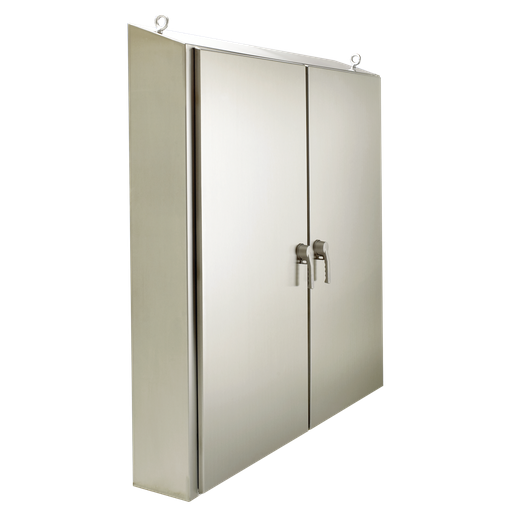

WaterShed Freestand 3-Pt Latch Type 4X, 62x51x12, Brushed, SS304
MFG #WS625112SS
$20,819.00Â /Â E
EACH
EACH
Product Description:
WaterShed, Free-Stand enclosures are ideal in sanitary food and beverage applications. This WaterShed Freestand 3-Pt Latch Type 4X, WS625112SS item measures 62x51x12 inches with a material of SS304 finish Brushed.
HESCO Part Number
HFWS625112SS
UPC
783510131210
Manufacturer Part Number
WS625112SS
Manufacturer
Hoffman
WaterShed Freestand 3-Pt Latch Type 4X, 62x51x12, Brushed, SS304
MFG #WS625112SS
Product Description:
WaterShed, Free-Stand enclosures are ideal in sanitary food and beverage applications. This WaterShed Freestand 3-Pt Latch Type 4X, WS625112SS item measures 62x51x12 inches with a material of SS304 finish Brushed.
HESCO Part Number
HFWS625112SS
UPC
783510131210
Manufacturer Part Number
WS625112SS
Manufacturer
Hoffman
$20,819.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by cover edges
- Hinged side of cover has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Three-point latching operated by PowerGlide Type 316L padlocking stainless steel handles
- Seamless foam-in-place one-piece gasket provides oil-tight and dust-tight seal against contaminants
- Bonding provision on doors; grounding studs on body
- Accessory mounting channel provided in enclosure top
- Panel studs fit optional NEMA style panels
- Mounting holes in bottom of enclosure for direct mounting or for optional sanitary legs and stainless steel floor stands
- Furnished hardware kit consists of panel mounting nuts, grounding hardware and hole seals for mounting hole
Specifications
| Height (H) | :Â Â | 1,575 |
| Width (W) | :Â Â | 1,295 |
| Depth (D) | :Â Â | 305 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | WaterShed |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 2.78 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 398 |
| Sub Brand | :Â Â | WaterShed |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 62.00x51.00x12.00 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
Data Sheet
Data Sheet - Spec-00016 - NAM-CA
Data Sheet - Spec-00840 - NAM-US
Certificate
Certificate - CERT-00195 - NAM-US
Certificate - CE-UKCA-00030_Watershed-4X - NAM-US
Instruction Manual
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 87572404 - NAM-US
Instruction Manual - 35320001 - NAM-US
Instruction Manual - 99401677 - NAM-US
Downloads
Spec Sheet
Data Sheet - Spec-00016 - NAM-CAData Sheet - Spec-00840 - NAM-USCertificate
Certificate - CERT-00195 - NAM-USCertificate - CE-UKCA-00030_Watershed-4X - NAM-USInstruction Manual
Instruction Manual - 99401640 - NAM-USInstruction Manual - 87572404 - NAM-USInstruction Manual - 35320001 - NAM-USInstruction Manual - 99401677 - NAM-USDownloads
Spec Sheet- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by cover edges
- Hinged side of cover has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Three-point latching operated by PowerGlide Type 316L padlocking stainless steel handles
- Seamless foam-in-place one-piece gasket provides oil-tight and dust-tight seal against contaminants
- Bonding provision on doors; grounding studs on body
- Accessory mounting channel provided in enclosure top
- Panel studs fit optional NEMA style panels
- Mounting holes in bottom of enclosure for direct mounting or for optional sanitary legs and stainless steel floor stands
- Furnished hardware kit consists of panel mounting nuts, grounding hardware and hole seals for mounting hole
Specifications
Height (H) :Â Â 1,575 Width (W) :Â Â 1,295 Depth (D) :Â Â 305 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â WaterShed Finish :Â Â Brushed #4 Thickness (T) :Â Â 2.78 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 398 Sub Brand :Â Â WaterShed Material :Â Â Stainless Steel Size :Â Â 62.00x51.00x12.00 in NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Data SheetData Sheet - Spec-00016 - NAM-CAData Sheet - Spec-00840 - NAM-US
CertificateCertificate - CERT-00195 - NAM-USCertificate - CE-UKCA-00030_Watershed-4X - NAM-US
Instruction ManualInstruction Manual - 99401640 - NAM-USInstruction Manual - 87572404 - NAM-USInstruction Manual - 35320001 - NAM-USInstruction Manual - 99401677 - NAM-US
DownloadsSpec Sheet
