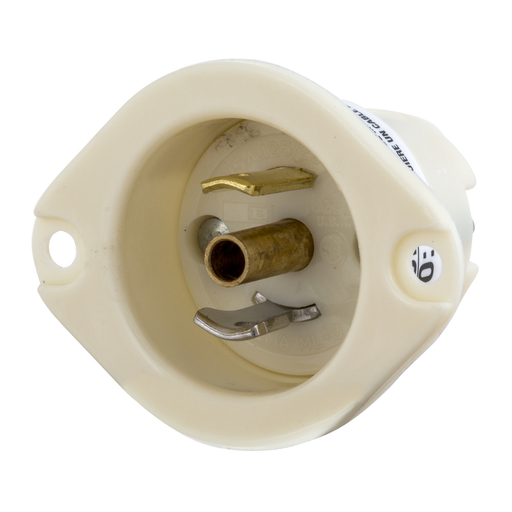

Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White
MFG #7595MB
$31.85 / E
EACH
EACH
Product Description:
Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White
HESCO Part Number
HUB7595MB
UPC
781786671409
Manufacturer Part Number
7595MB
Manufacturer
Hubbell Wiring Device
Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White
MFG #7595MB
Product Description:
Locking Devices, Bryant Midget Locking, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, ML-2P, Screw Terminal, Black & White
HESCO Part Number
HUB7595MB
UPC
781786671409
Manufacturer Part Number
7595MB
Manufacturer
Hubbell Wiring Device
$31.85 / E
EACH
EACH
- Features
- Specifications
- Resources
- Industrial
- Flanged Inlet
- 15A 125V
- 2-Pole 3-Wire Grounding
- ML-2P
- Standard Product
Specifications
| Country of Origin | : | PR |
| Dimensions | : | 2.06 in x 1.62 in x 1.17 in |
| Each - Width | : | 3.500 in |
| Height | : | 1.17 in |
| Length | : | 2.06 in |
| Amperage Rating | : | 15 A |
| Application | : | Extra Heavy Duty Industrial |
| Color | : | White |
| Dielectric Strength | : | Withstands 3000V Minimum in |
| NEMA Rating | : | ML-2P |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Size | : | 2.06 in x 1.62 in x 1.17 in |
| Special Features | : | Standard Product |
| Temperature Rating | : | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Type | : | Flanged Inlet |
| Voltage Rating | : | 125 V |
| Wire Size | : | #18 AWG to #12 AWG |
| Width | : | 1.62 in |
| Connectivity | : | Screw Terminals |
| Nema Rating | : | ML-2P |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Style | : | Grounding |
| Class Code | : | A08 |
| Description - Invoice | : | LKG FLG-INLET, MIDGET 15A 125V, ML-2P |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536694020 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A08A172 |
| Material - Mounting Hardware | : | Screw Mounting |
| Material | : | Composite |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.200x7.000x4.300 (in) |
| Carton - Gross Weight per Pack | : | 0.95 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 781786671409 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 5.200 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Industrial
- Flanged Inlet
- 15A 125V
- 2-Pole 3-Wire Grounding
- ML-2P
- Standard Product
Specifications
Country of Origin : PR Dimensions : 2.06 in x 1.62 in x 1.17 in Each - Width : 3.500 in Height : 1.17 in Length : 2.06 in Amperage Rating : 15 A Application : Extra Heavy Duty Industrial Color : White Dielectric Strength : Withstands 3000V Minimum in NEMA Rating : ML-2P Number of Poles : 2-Pole Number of Wires : 3-Wire Size : 2.06 in x 1.62 in x 1.17 in Special Features : Standard Product Temperature Rating : Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact Type : Flanged Inlet Voltage Rating : 125 V Wire Size : #18 AWG to #12 AWG Width : 1.62 in Connectivity : Screw Terminals Nema Rating : ML-2P Number Of Poles : 2-Pole Number Of Wires : 3-Wire Style : Grounding Class Code : A08 Description - Invoice : LKG FLG-INLET, MIDGET 15A 125V, ML-2P Freight Class Code : 06168002 Harmonization Code : 8536694020 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : A08A172 Material - Mounting Hardware : Screw Mounting Material : Composite Base Unit of Measure : EA BOX SIZE : 4.200x7.000x4.300 (in) Carton - Gross Weight per Pack : 0.95 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 781786671409 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 5.200 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : Yes - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset Reference
