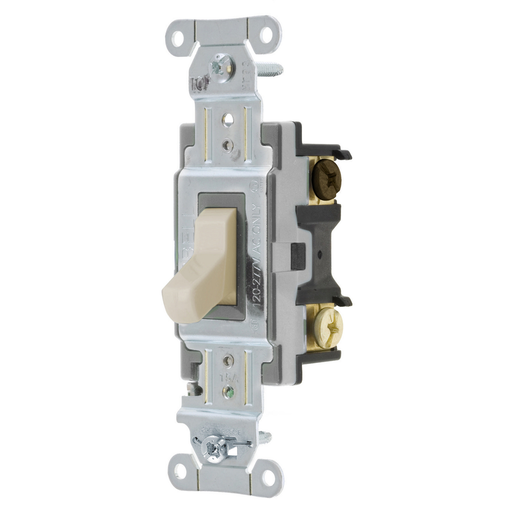

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, Light Almond
MFG #CSB415LA
$27.80 / E
EACH
EACH
Product Description:
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, Light Almond
HESCO Part Number
HUBCSB415LA
UPC
783585154015
Manufacturer Part Number
CSB415LA
Manufacturer
Hubbell Wiring Device
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, Light Almond
MFG #CSB415LA
Product Description:
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, Light Almond
HESCO Part Number
HUBCSB415LA
UPC
783585154015
Manufacturer Part Number
CSB415LA
Manufacturer
Hubbell Wiring Device
$27.80 / E
EACH
EACH
- Features
- Specifications
- Resources
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Certifications
| EU RoHS Indicator | : | Yes |
Specifications | ||
| Country of Origin | : | CN |
| Dimensions | : | 4.18 in x 1.49 in x 1.83 in |
| Each - Width | : | 1.910 in |
| Height | : | 1.83 in |
| Industry Standard(s) | : | UL Listed |
| Length | : | 4.18 in |
| Temperature Rise - Max. | : | 30°C maximum at rated current |
| Action | : | DPDT |
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Number of Poles | : | Double Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Size | : | 4.18 in x 1.49 in x 1.83 in |
| Standard | : | UL Listed |
| Type | : | Toggle |
| Voltage Rating | : | 120-277 VAC |
| Weight | : | 0.15 lb. |
| Width | : | 1.49 in |
| Connectivity | : | Back and Side Wired |
| Dielectric Strength | : | Withstands 1500V AC minimum for 1 minute |
| Number Of Poles | : | Double Pole |
| Style | : | Four Way |
| Wire Size | : | #14 AWG to #10 AWG |
| Class Code | : | A16 |
| Description - Invoice | : | SWITCH, COMM, 4W, 15A 120/277V, B+S, LA |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509040 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | CSB415OW |
| Sub Class Code | : | A16A250 |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.548x9.858x4.298 (in) |
| Carton - Gross Weight per Pack | : | 1.9 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585154015 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 7.500 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Certifications
EU RoHS Indicator : Yes Specifications
Country of Origin : CN Dimensions : 4.18 in x 1.49 in x 1.83 in Each - Width : 1.910 in Height : 1.83 in Industry Standard(s) : UL Listed Length : 4.18 in Temperature Rise - Max. : 30°C maximum at rated current Action : DPDT Amperage Rating : 15 A Color : Light Almond Number of Poles : Double Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Size : 4.18 in x 1.49 in x 1.83 in Standard : UL Listed Type : Toggle Voltage Rating : 120-277 VAC Weight : 0.15 lb. Width : 1.49 in Connectivity : Back and Side Wired Dielectric Strength : Withstands 1500V AC minimum for 1 minute Number Of Poles : Double Pole Style : Four Way Wire Size : #14 AWG to #10 AWG Class Code : A16 Description - Invoice : SWITCH, COMM, 4W, 15A 120/277V, B+S, LA Freight Class Code : 06168002 Harmonization Code : 8536509040 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : CSB415OW Sub Class Code : A16A250 Material : Nylon Base Unit of Measure : EA BOX SIZE : 3.548x9.858x4.298 (in) Carton - Gross Weight per Pack : 1.9 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585154015 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 7.500 lb. Each - Pack Description : Each Lowest Level UOM : Each - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceInstallation Manuals Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
CSB415LA AutoCAD Drawing
