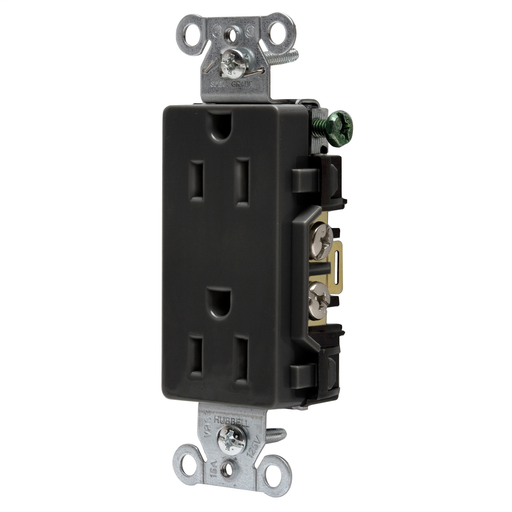

Construction/Commercial Receptacles DR15BLK
MFG #DR15BLK
$8.95 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack.
HESCO Part Number
HUBDR15BLK
UPC
783585127835
Manufacturer Part Number
DR15BLK
Manufacturer
Hubbell Wiring Device
Construction/Commercial Receptacles DR15BLK
MFG #DR15BLK
Product Description:
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack.
HESCO Part Number
HUBDR15BLK
UPC
783585127835
Manufacturer Part Number
DR15BLK
Manufacturer
Hubbell Wiring Device
$8.95 / E
EACH
EACH
- Features
- Specifications
- Resources
- Certified to CSA, C22.2, No. 42
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Aesthetic Style Line® decorator design
- Fed. Spec. W-C-596
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Smooth face
- NEMA® WD-6 Compliant
- Environmental - Flammability - UL 94 V-2
- Triple wipe contacts
- UL Listed to UL498 File No. E2186
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dimensions
| Dimensions | : | 1.29 in x 1.06 in x 3.28 in |
| Display Size | : | Standard Sized Product |
| Height | : | 3.28 in |
| Length | : | 1.29 in |
| Weight | : | 0.2 lb |
| Width | : | 1.06 in |
Certifications and Compliance | ||
| Nema Rating | : | 5-15R |
Conductor Related | ||
| Number Of Wires | : | 3-Wire |
| Wire Size | : | #14 AWG to #10 AWG |
General | ||
| Application | : | Commercial Specification Grade |
| Color | : | Black |
| Environmental Conditions | : | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | : | 0.5 |
| Item Type | : | Decorator Duplex |
| Material | : | Nylon |
| Material - Mounting Hardware | : | Screw Mounting |
| Number Of Poles | : | 2-Pole |
| OEM Brand Name | : | Hubbell Wiring Device-Kellems |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Series | : | Commercial Specification Grade |
| Style | : | Style Line Decorator |
| Type | : | Standard Duplex |
| UPC | : | 783585127835 |
Electrical Ratings | ||
| Amperage Rating | : | 15 A |
| Connectivity | : | Back and Side Wired |
| Current / Amperage Rating | : | 15 A |
| Current Rating | : | 15 A |
| Dielectric Strength | : | Withstands 2,000V minimum |
| Phase | : | Single Phase |
| Voltage Rating | : | 125 V |
| Voltage Rating Description | : | 125 V |
| Wattage | : | 1875 W |
Logistics | ||
| Carton Quantity | : | 10 EA |
