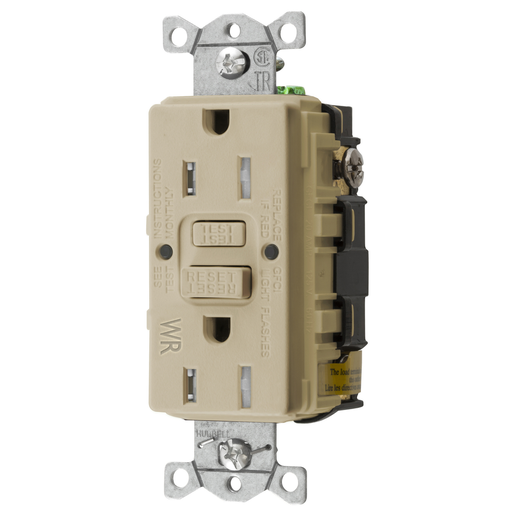

Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory
MFG #GFTWRST15I
$38.85 / E
Each
Each
Product Description:
Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory
HESCO Part Number
HUBGFTWRST15I
UPC
883778122590
Manufacturer Part Number
GFTWRST15I
Manufacturer
Hubbell Wiring Device
Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory
MFG #GFTWRST15I
Product Description:
Power Protection Devices, Receptacle, Self Test, GFCI, TRWR, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory
HESCO Part Number
HUBGFTWRST15I
UPC
883778122590
Manufacturer Part Number
GFTWRST15I
Manufacturer
Hubbell Wiring Device
$38.85 / E
Each
Each
- Features
- Specifications
- Resources
- Patented shutter design for tamper-resistant protection
- Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
- Patented AUTOGUARD® self test technology
- Protects against line and load reversal, no power to the face or downstream if device is miswired
Specifications
| Country of Origin | : | China |
| Current / Amperage Rating | : | 15 A |
| Width | : | 2.048 in |
| Each - Width | : | 2.048 in |
| Industry Standard(s) | : | Meets All NEC® Requirements |
| Amperage Rating | : | 15 A |
| Color | : | Ivory |
| NEMA Rating | : | 5-15R |
| Standard | : | Meets All NEC® Requirements |
| Type | : | Tamper-Resistant, Weather Resistant |
| Voltage Rating Description | : | 125 V |
| Nema Rating | : | 5-15R |
| Style | : | Standard |
| Class Code | : | A40 |
| Description - Invoice | : | 15A COMM SELF TEST TRWR GFR IVORY |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536308000 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | GFTR15I |
| Sub Class Code | : | A40A400 |
| Series | : | Heavy Duty |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 5.300x9.300x6.500 (in) |
| Carton - Gross Weight per Pack | : | 17.300 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00883778122590 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 40 EA |
| Case Weight | : | 8.637 lb. |
| Pallet Height | : | 44.000 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 929.600 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
Downloads
Spec Sheet
Catalog Full Asset Reference
Catalog Page Asset Reference 1
Catalog Page Asset Reference 2
Installation Manuals Asset Reference
Sales Drawing Asset Reference
Warranty Document Asset Reference
GFTWRST15I AutoCAD Drawing
Connexion 2.0 Zone Distribution System
AUTOGUARD® Self Test Ground Fault Receptacles
Residential Product Guide
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset Reference 1Catalog Page Asset Reference 2Installation Manuals Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset ReferenceGFTWRST15I AutoCAD DrawingConnexion 2.0 Zone Distribution SystemAUTOGUARD® Self Test Ground Fault ReceptaclesResidential Product Guide- Patented shutter design for tamper-resistant protection
- Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
- Patented AUTOGUARD® self test technology
- Protects against line and load reversal, no power to the face or downstream if device is miswired
Specifications
Country of Origin : China Current / Amperage Rating : 15 A Width : 2.048 in Each - Width : 2.048 in Industry Standard(s) : Meets All NEC® Requirements Amperage Rating : 15 A Color : Ivory NEMA Rating : 5-15R Standard : Meets All NEC® Requirements Type : Tamper-Resistant, Weather Resistant Voltage Rating Description : 125 V Nema Rating : 5-15R Style : Standard Class Code : A40 Description - Invoice : 15A COMM SELF TEST TRWR GFR IVORY Freight Class Code : 06168002 Harmonization Code : 8536308000 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : GFTR15I Sub Class Code : A40A400 Series : Heavy Duty Base Unit of Measure : EA BOX SIZE : 5.300x9.300x6.500 (in) Carton - Gross Weight per Pack : 17.300 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 00883778122590 Carton - Total Units : 10 EA Case - Total Units : 40 EA Case Weight : 8.637 lb. Pallet Height : 44.000 in Pallet Length : 48.000 in Pallet Weight : 929.600 lb. Pallet Width : 40.000 in Certifications
EU RoHS Indicator : Contact Manufacturer - DownloadsSpec SheetCatalog Full Asset ReferenceCatalog Page Asset Reference 1Catalog Page Asset Reference 2Installation Manuals Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset ReferenceGFTWRST15I AutoCAD DrawingConnexion 2.0 Zone Distribution SystemAUTOGUARD® Self Test Ground Fault ReceptaclesResidential Product Guide
