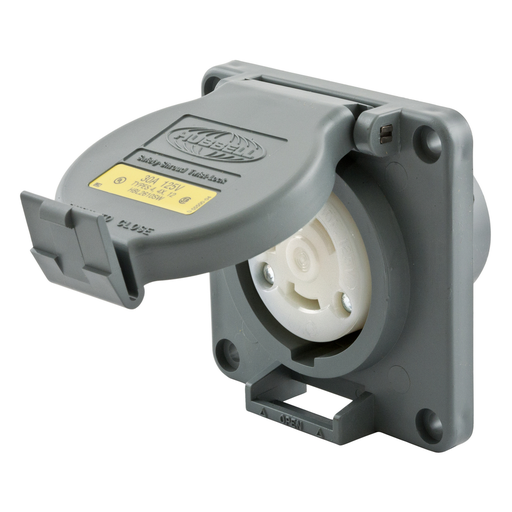

Locking Devices, Twist-Lock®, Watertight Safety Shroud, Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Gray
MFG #HBL2610SW
$180.00 / E
EACH
EACH
Product Description:
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, PBT housing and flange, Gray.
HESCO Part Number
HUBHBL2610SW
UPC
783585231587
Manufacturer Part Number
HBL2610SW
Manufacturer
Hubbell Wiring Device
Locking Devices, Twist-Lock®, Watertight Safety Shroud, Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Gray
MFG #HBL2610SW
Product Description:
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, PBT housing and flange, Gray.
HESCO Part Number
HUBHBL2610SW
UPC
783585231587
Manufacturer Part Number
HBL2610SW
Manufacturer
Hubbell Wiring Device
$180.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouded Watertight Construction
Specifications
| Country of Origin | : | US |
| Dimensions | : | 3.75 in x 3.75 in x 2.69 in |
| Each - Width | : | 3.100 in |
| Height | : | 2.69 in |
| Industry Standard(s) | : | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Length | : | 3.75 in |
| Amperage Rating | : | 30 A |
| Application | : | Heavy Duty Industrial Shrouded Watertight |
| Dielectric Strength | : | Withstands 2,000V minimum |
| NEMA Rating | : | L5-30R |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Phase | : | Single Phase |
| Size | : | 3.75 in x 3.75 in x 2.69 in |
| Special Features | : | Shrouded Watertight Construction |
| Standard | : | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Type | : | Receptacle |
| Voltage Rating | : | 125 V |
| Wire Size | : | #16 AWG to #8 AWG |
| Weight | : | 0.55 lb. |
| Width | : | 3.75 in |
| Connectivity | : | Back Wired Screw Terminals |
| Nema Rating | : | L5-30R |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | : | A08 |
| Description - Invoice | : | LKG WT S/SHRD RCPT, 30A 125V, L5-30R,GY |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536694020 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A08A130 |
| Material - Mounting Hardware | : | Screw Mounting |
| Material | : | Valox™ |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.700x9.600x10.000 (in) |
| Carton - Gross Weight per Pack | : | 3.2 lb. |
| Carton - Number of Sub Packs | : | 5 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585231587 |
| Carton - Total Units | : | 5 EA |
| Case Weight | : | 3.250 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet - GTIN - Package | : | 70783585231586 |
| Pallet Height | : | 47.000 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 650.000 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
