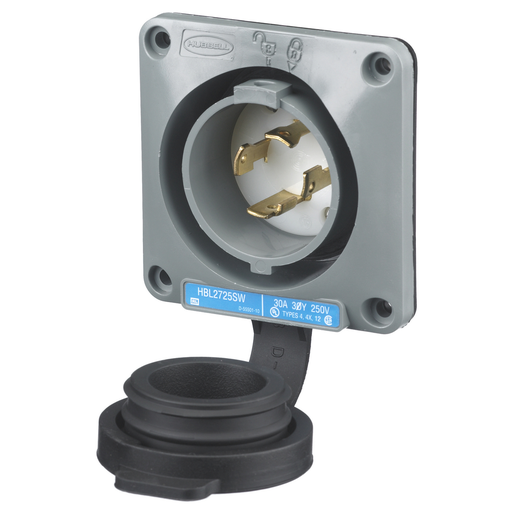

Locking Devices, Twist-Lock®, Watertight Safety Shroud, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30P, Screw Terminal, Gray
MFG #HBL2725SW
$266.00 / E
EACH
EACH
Product Description:
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Gray.
HESCO Part Number
HUBHBL2725SW
UPC
783585231884
Manufacturer Part Number
HBL2725SW
Manufacturer
Hubbell Wiring Device
Locking Devices, Twist-Lock®, Watertight Safety Shroud, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30P, Screw Terminal, Gray
MFG #HBL2725SW
Product Description:
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Gray.
HESCO Part Number
HUBHBL2725SW
UPC
783585231884
Manufacturer Part Number
HBL2725SW
Manufacturer
Hubbell Wiring Device
$266.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Specifications
| Country of Origin | : | PR |
| Dimensions | : | 3.75 in x 3.75 in x 2.44 in |
| Each - Width | : | 3.200 in |
| Height | : | 2.44 in |
| Industry Standard(s) | : | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Length | : | 3.75 in |
| Standards - RoHS Compliance Status | : | CM |
| Amperage Rating | : | 30 A |
| Application | : | Extra Heavy Duty Industrial |
| Color | : | Gray |
| Dielectric Strength | : | Withstands 2,000V minimum |
| NEMA Rating | : | L15-30P |
| Number of Poles | : | 3-Pole |
| Number of Wires | : | 4-Wire |
| Phase | : | Three Phase |
| Size | : | 3.75 in x 3.75 in x 2.44 in |
| Special Features | : | Shrouded Watertight Construction |
| Standard | : | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Type | : | Flanged Inlet |
| Voltage Rating | : | 250 V |
| Wire Size | : | #16 AWG to #8 AWG |
| Weight | : | 0.65 lb. |
| Width | : | 3.75 in |
| Connectivity | : | Back Wired Screw Terminals |
| Nema Rating | : | L15-30P |
| Number Of Poles | : | 3-Pole |
| Number Of Wires | : | 4-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | : | A08 |
| Description - Invoice | : | LKG WT S/SHRD FL-INLT,30A3P 250V,L15-30P |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536694020 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A08A130 |
| Material - Mounting Hardware | : | Screw Mounting |
| Material | : | Thermoplastic |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.700x9.700x9.800 (in) |
| Carton - Gross Weight per Pack | : | 3.95 lb. |
| Carton - Number of Sub Packs | : | 5 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585231884 |
| Carton - Total Units | : | 5 EA |
| Case Weight | : | 3.550 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Yes |
