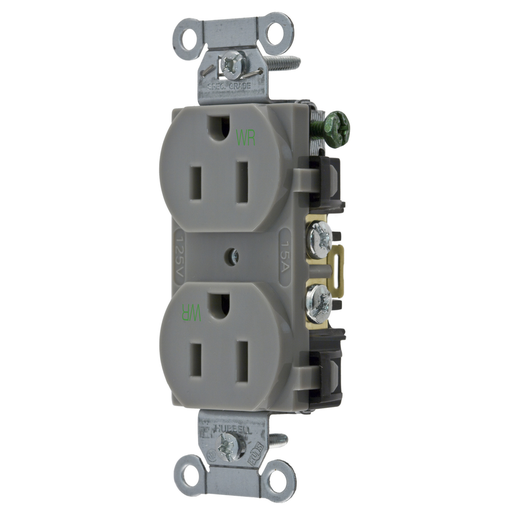

Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack
MFG #HBL4APGY
$13.60 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack.
HESCO Part Number
HUBHBL4APGY
UPC
783585144498
Manufacturer Part Number
HBL4APGY
Manufacturer
Hubbell Wiring Device
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack
MFG #HBL4APGY
Product Description:
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack.
HESCO Part Number
HUBHBL4APGY
UPC
783585144498
Manufacturer Part Number
HBL4APGY
Manufacturer
Hubbell Wiring Device
$13.60 / E
EACH
EACH
- Features
- Specifications
- Resources
- Weather-resistance complies with national electrical code requirements
- Smooth face
- Wrap-around galvanized steel strap
- Triple wipe contacts
- Weather Resistant- Self Grounding
Specifications
| Country of Origin | : | CN |
| Dimensions | : | 1.32 in x 0.83 in x 3.28 in |
| Each - Width | : | 2.900 in |
| Height | : | 3.28 in |
| Industry Standard(s) | : | Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Length | : | 1.32 in |
| Amperage Rating | : | 15 A |
| Application | : | Commercial Specification Grade |
| Color | : | Gray |
| Dielectric Strength | : | Withstands 2,000V minimum |
| NEMA Rating | : | 5-15R |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Phase | : | Single Phase |
| Size | : | 1.32 in x 0.83 in x 3.28 in |
| Special Features | : | Weather Resistant- Self Grounding |
| Standard | : | Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Type | : | Weather Resistant |
| Voltage Rating | : | 125 V |
| Wattage | : | 1875 W |
| Wire Size | : | #14 AWG to #10 AWG |
| Weight | : | 0.15 lb. |
| Width | : | 0.83 in |
| Connectivity | : | Back and Side Wired |
| Nema Rating | : | 5-15R |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | : | Smooth Face |
| Class Code | : | A04 |
| Description - Invoice | : | WTR RES, COM GRD, 15A 125V, 5-15R, GY |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536698000 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A04A060 |
| Material - Mounting Hardware | : | Screw Mounting |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 2.300x8.100x4.300 (in) |
| Carton - Gross Weight per Pack | : | 1.8 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585144498 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 100 EA |
| Case Weight | : | 18.250 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet Height | : | 42.000 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 1642.500 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Weather-resistance complies with national electrical code requirements
- Smooth face
- Wrap-around galvanized steel strap
- Triple wipe contacts
- Weather Resistant- Self Grounding
Specifications
Country of Origin : CN Dimensions : 1.32 in x 0.83 in x 3.28 in Each - Width : 2.900 in Height : 3.28 in Industry Standard(s) : Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Length : 1.32 in Amperage Rating : 15 A Application : Commercial Specification Grade Color : Gray Dielectric Strength : Withstands 2,000V minimum NEMA Rating : 5-15R Number of Poles : 2-Pole Number of Wires : 3-Wire Phase : Single Phase Size : 1.32 in x 0.83 in x 3.28 in Special Features : Weather Resistant- Self Grounding Standard : Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Type : Weather Resistant Voltage Rating : 125 V Wattage : 1875 W Wire Size : #14 AWG to #10 AWG Weight : 0.15 lb. Width : 0.83 in Connectivity : Back and Side Wired Nema Rating : 5-15R Number Of Poles : 2-Pole Number Of Wires : 3-Wire Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Style : Smooth Face Class Code : A04 Description - Invoice : WTR RES, COM GRD, 15A 125V, 5-15R, GY Freight Class Code : 06168002 Harmonization Code : 8536698000 Image Actual Or Representative : A MSDS Flag : No Sub Class Code : A04A060 Material - Mounting Hardware : Screw Mounting Material : Nylon Base Unit of Measure : EA BOX SIZE : 2.300x8.100x4.300 (in) Carton - Gross Weight per Pack : 1.8 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585144498 Carton - Total Units : 10 EA Case - Total Units : 100 EA Case Weight : 18.250 lb. Each - Pack Description : Each Lowest Level UOM : Each Pallet Height : 42.000 in Pallet Length : 48.000 in Pallet Weight : 1642.500 lb. Pallet Width : 40.000 in Certifications
EU RoHS Indicator : Yes - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset ReferenceSales Drawing Asset ReferenceWarranty Document Asset Reference
M10847_ACAD.dwgEdgeConnect™ Technology FAQ
