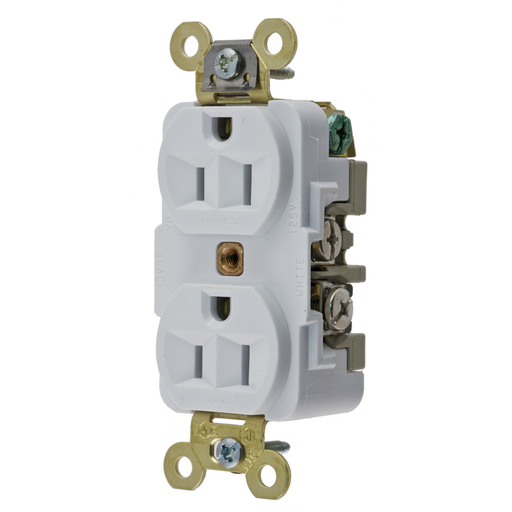

Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack
MFG #HBL5262W
$28.95 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.
HESCO Part Number
HUBHBL5262W
UPC
783585435206
Manufacturer Part Number
HBL5262W
Manufacturer
Hubbell Wiring Device
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack
MFG #HBL5262W
Product Description:
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.
HESCO Part Number
HUBHBL5262W
UPC
783585435206
Manufacturer Part Number
HBL5262W
Manufacturer
Hubbell Wiring Device
$28.95 / E
EACH
EACH
- Features
- Specifications
- Resources
- Back wired ground terminal allows faster, easier installation
- One-piece brass integral ground strap
- Finder Groove Face
- Deep body design with circuit ID face
- Self Grounding
Specifications
| Country of Origin | : | US |
| Dimensions | : | 3.28 in x 1.65 in x 1.19 in |
| Each - Width | : | 1.800 in |
| Height | : | 1.19 in |
| Industry Standard(s) | : | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Length | : | 3.28 in |
| Standards - RoHS Compliance Status | : | CM |
| Amperage Rating | : | 15 A |
| Application | : | Extra Heavy Duty Specification Grade |
| Color | : | Blanc |
| Dielectric Strength | : | Withstands 2,000V minimum |
| NEMA Rating | : | 5-15R |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Phase | : | Single Phase |
| Size | : | 3.28 in x 1.65 in x 1.19 in |
| Special Features | : | Self Grounding |
| Standard | : | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Type | : | Standard Duplex |
| Voltage Rating | : | 125 VAC |
| Wattage | : | 1875 W |
| Wire Size | : | #14 AWG to #10 AWG |
| Weight | : | 0.25 lb. |
| Width | : | 1.65 in |
| Connectivity | : | Back and Side Wired |
| Nema Rating | : | 5-15R |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | : | Finder Groove Face |
| Class Code | : | A04 |
| Description - Invoice | : | DUP RCPT, HD IND GRD, 15A125V, 5-15R, WH |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536690200 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | HBL5262WCN |
| Sub Class Code | : | A04A020 |
| Material - Mounting Hardware | : | Screw Mounting |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.200x9.500x4.300 (in) |
| Carton - Gross Weight per Pack | : | 2.7 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585435206 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 100 EA |
| Case Weight | : | 29.550 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet Height | : | 46.500 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 1625.250 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
