Marine Adapter Molded, Straight Blade 30A Locking Female to 50A Locking Male
MFG #HBL61CM55
$420.00 / E
EACH
EACH
Product Description:

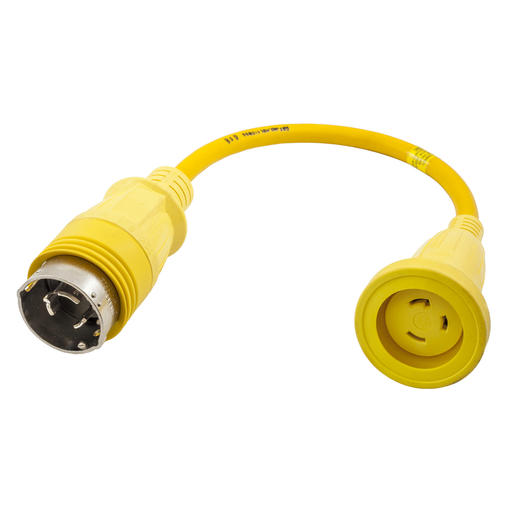

Adapter, Marine, Molded, Straight Blade, 30A 125V Locking Female L5 to 50A 125V Locking Male
HESCO Part Number
HUBHBL61CM55
UPC
783585808628
Manufacturer Part Number
HBL61CM55
Manufacturer
Hubbell Wiring Device
Marine Adapter Molded, Straight Blade 30A Locking Female to 50A Locking Male
MFG #HBL61CM55
Product Description:
Adapter, Marine, Molded, Straight Blade, 30A 125V Locking Female L5 to 50A 125V Locking Male
HESCO Part Number
HUBHBL61CM55
UPC
783585808628
Manufacturer Part Number
HBL61CM55
Manufacturer
Hubbell Wiring Device
$420.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Marine
- Molded
- Straight Blade
- 30A 125V Locking Female L5-30R to 50A 125V Locking Male
- Corrosion Resistant
Specifications
| Country of Origin | : | MX |
| Width | : | 10.100 in |
| Each - Width | : | 10.100 in |
| Standards - RoHS Compliance Status | : | CM |
| Amperage Rating | : | 30 A |
| Application | : | Straight Adapter |
| Color | : | Yellow |
| Number of Pins | : | Male- 50A 125V Twist-Lock® |
| Operating Temperature | : | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Receptacle | : | Female- 30A 125V Twist-Lock® |
| Special Features | : | Corrosion Resistant |
| Voltage Rating | : | 125 VAC |
| Wattage | : | 3750 |
| Number Of Pins | : | Male- 50A 125V Twist-Lock® |
| Class Code | : | A32 |
| Description - Invoice | : | MARINE ADAPT, STR, YL, 30A L TO 50A L |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8544429090 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | 61CM55M |
| Sub Class Code | : | A32A320 |
| Material | : | Composite |
| Receptacle Type | : | Female- 30A 125V Twist-Lock® |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 5.200x13.300x10.100 (in) |
| Carton - Gross Weight per Pack | : | 3.200 lb. |
| Carton - Number of Sub Packs | : | 1 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783585808628 |
| Carton - Total Units | : | 1 |
| Case Weight | : | 3.200 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | No |
- Marine
- Molded
- Straight Blade
- 30A 125V Locking Female L5-30R to 50A 125V Locking Male
- Corrosion Resistant
Specifications
Country of Origin : MX Width : 10.100 in Each - Width : 10.100 in Standards - RoHS Compliance Status : CM Amperage Rating : 30 A Application : Straight Adapter Color : Yellow Number of Pins : Male- 50A 125V Twist-Lock® Operating Temperature : Max Continuous- 75 Degrees C, Minimum- -40 Without Impact Receptacle : Female- 30A 125V Twist-Lock® Special Features : Corrosion Resistant Voltage Rating : 125 VAC Wattage : 3750 Number Of Pins : Male- 50A 125V Twist-Lock® Class Code : A32 Description - Invoice : MARINE ADAPT, STR, YL, 30A L TO 50A L Freight Class Code : 06168002 Harmonization Code : 8544429090 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : 61CM55M Sub Class Code : A32A320 Material : Composite Receptacle Type : Female- 30A 125V Twist-Lock® Base Unit of Measure : EA BOX SIZE : 5.200x13.300x10.100 (in) Carton - Gross Weight per Pack : 3.200 lb. Carton - Number of Sub Packs : 1 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 00783585808628 Carton - Total Units : 1 Case Weight : 3.200 lb. Each - Pack Description : Each Lowest Level UOM : Each Certifications
EU RoHS Indicator : No - Downloads
Spec SheetCatalog Full Asset ReferenceCatalog Page Asset Reference 1Catalog Page Asset Reference 2Installation Manuals Asset ReferenceWarranty Document Asset ReferenceHubbell Marine Full Line Catalog
