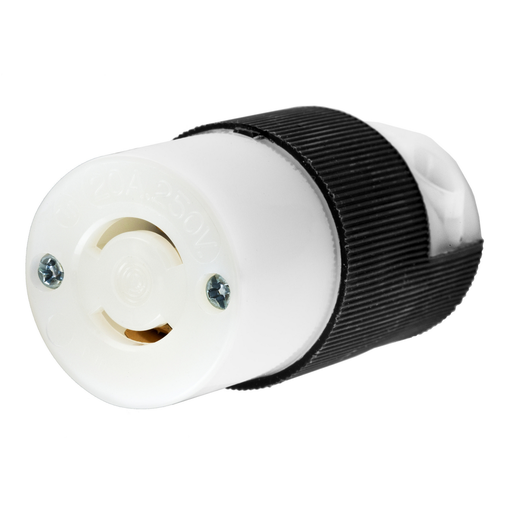

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 250V, 2-Pole 2-Wire Non Grounding, L2-20R, Screw Terminal, Black and W hite
MFG #HBL7101C
$32.40 / E
EACH
EACH
Product Description:
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.
HESCO Part Number
HUBHBL7101C
UPC
783585177007
Manufacturer Part Number
HBL7101C
Manufacturer
Hubbell Wiring Device
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 250V, 2-Pole 2-Wire Non Grounding, L2-20R, Screw Terminal, Black and W hite
MFG #HBL7101C
Product Description:
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.
HESCO Part Number
HUBHBL7101C
UPC
783585177007
Manufacturer Part Number
HBL7101C
Manufacturer
Hubbell Wiring Device
$32.40 / E
EACH
EACH
- Features
- Specifications
- Resources
- Insulated nylon construction to keep non-current carrying parts from becoming energized
- Tough ribbed nylon housing for secure gripping
- Two-part cord grip tightens with two screws for maximum retention force.
- Standard Product
Specifications
| Country of Origin | : | US |
| Dimensions | : | 1.53 in x 1.53 in x 2.78 in |
| Each - Width | : | 1.660 in |
| Height | : | 2.78 in |
| Industry Standard(s) | : | Fed.Spec.W-C-596 |
| Length | : | 1.53 in |
| Standards - RoHS Compliance Status | : | CM |
| Amperage Rating | : | 20 A |
| Application | : | Heavy Duty Industrial |
| Color | : | Black, White |
| NEMA Rating | : | L2-20P |
| Number of Poles | : | 2-Pole |
| Size | : | 1.53 in x 1.53 in x 2.78 in |
| Special Features | : | Standard Product |
| Standard | : | Fed.Spec.W-C-596 |
| Temperature Rating | : | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Type | : | Connector Body |
| Voltage Rating | : | 250 VAC |
| Weight | : | 0.15 lb. |
| Width | : | 1.53 in |
| Connectivity | : | Pressure Terminal Screws |
| Dielectric Strength | : | Withstands 2,000V minimum |
| Nema Rating | : | L2-20P |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 2-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | : | #18 AWG to #10 AWG |
| Class Code | : | A08 |
| Description - Invoice | : | LKG CONN, 20A 250V, L2-20R, B/W |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536690200 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | 7101C |
| Sub Class Code | : | A08A110 |
| Cable Range | : | 0.230 - 0.720 in |
| Cord Range | : | 0.220"-0.720"(5.6-18.3) |
| Material - Mounting Hardware | : | Cord Mounted |
| Cord Diameter | : | 0.230-0.720 in |
| Material | : | Nylon |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.300x8.400x3.600 (in) |
| Carton - Gross Weight per Pack | : | 1.500 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585177007 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 50 EA |
| Case Weight | : | 4.150 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet Height | : | 44.000 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 1104.000 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
- Insulated nylon construction to keep non-current carrying parts from becoming energized
- Tough ribbed nylon housing for secure gripping
- Two-part cord grip tightens with two screws for maximum retention force.
- Standard Product
Specifications
Country of Origin : US Dimensions : 1.53 in x 1.53 in x 2.78 in Each - Width : 1.660 in Height : 2.78 in Industry Standard(s) : Fed.Spec.W-C-596 Length : 1.53 in Standards - RoHS Compliance Status : CM Amperage Rating : 20 A Application : Heavy Duty Industrial Color : Black, White NEMA Rating : L2-20P Number of Poles : 2-Pole Size : 1.53 in x 1.53 in x 2.78 in Special Features : Standard Product Standard : Fed.Spec.W-C-596 Temperature Rating : Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. Type : Connector Body Voltage Rating : 250 VAC Weight : 0.15 lb. Width : 1.53 in Connectivity : Pressure Terminal Screws Dielectric Strength : Withstands 2,000V minimum Nema Rating : L2-20P Number Of Poles : 2-Pole Number Of Wires : 2-Wire Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Wire Size : #18 AWG to #10 AWG Class Code : A08 Description - Invoice : LKG CONN, 20A 250V, L2-20R, B/W Freight Class Code : 06168002 Harmonization Code : 8536690200 Image Actual Or Representative : A MSDS Flag : No Replaced Catalog Number : 7101C Sub Class Code : A08A110 Cable Range : 0.230 - 0.720 in Cord Range : 0.220"-0.720"(5.6-18.3) Material - Mounting Hardware : Cord Mounted Cord Diameter : 0.230-0.720 in Material : Nylon Base Unit of Measure : EA BOX SIZE : 3.300x8.400x3.600 (in) Carton - Gross Weight per Pack : 1.500 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 783585177007 Carton - Total Units : 10 EA Case - Total Units : 50 EA Case Weight : 4.150 lb. Each - Pack Description : Each Lowest Level UOM : Each Pallet Height : 44.000 in Pallet Length : 48.000 in Pallet Weight : 1104.000 lb. Pallet Width : 40.000 in Certifications
