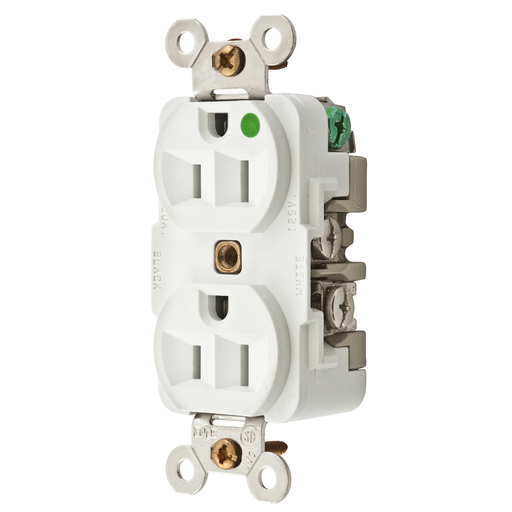

Straight Blade Devices, Receptacles, Duplex, Hospital Grade, MRI Series, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White
MFG #HBL8200WMRI
$79.15 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, MRI Series, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White.
HESCO Part Number
HUBHBL8200WMRI
UPC
783585148632
Manufacturer Part Number
HBL8200WMRI
Manufacturer
Hubbell Wiring Device
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, MRI Series, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White
MFG #HBL8200WMRI
Product Description:
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, MRI Series, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White.
HESCO Part Number
HUBHBL8200WMRI
UPC
783585148632
Manufacturer Part Number
HBL8200WMRI
Manufacturer
Hubbell Wiring Device
$79.15 / E
EACH
EACH
- Features
- Specifications
- Resources
- All non-ferrous for MRI labs
- One-piece nickel-plated brass integral ground strap
- Unique bypass contact design
- I.D. marking surface helps in quick circuit identification
- MRI Version
Specifications
| Country of Origin | : | PR |
| Width | : | 1.790 in |
| Each - Width | : | 1.790 in |
| Industry Standard(s) | : | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Amperage Rating | : | 15 A |
| Application | : | Hospital Grade |
| Color | : | White |
| Dielectric Strength | : | Withstands 2,000V minimum |
| NEMA Rating | : | 5-15R |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Phase | : | Single Phase |
| Special Features | : | MRI Version |
| Standard | : | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Type | : | Receptacle |
| Voltage Rating | : | 125 V |
| Wattage | : | 1875 W |
| Wire Size | : | #14 AWG to #10 AWG |
| Weight | : | 0.2 lb. |
| Connectivity | : | Back and Side Wired Screw Terminals |
| Nema Rating | : | 5-15R |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | : | thermoplastic polyester face |
| Class Code | : | A04 |
| Description - Invoice | : | MRI RCPT, HG, 15A 125V, 5-15R, W |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536698000 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A04A040 |
| Material - Mounting Hardware | : | Screw Mounting |
| Material | : | Thermoplastic |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.238x9.178x4.298 (in) |
| Carton - Gross Weight per Pack | : | 2.75 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585148632 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 100 EA |
| Case Weight | : | 20.000 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
Certifications | ||
| EU RoHS Indicator | : | No |
