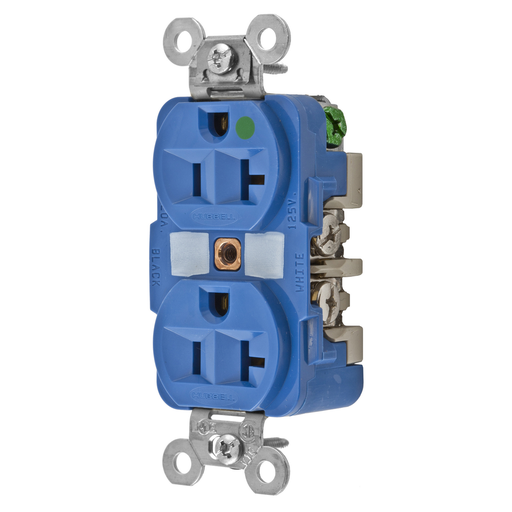

Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, Blue, Single Pack
MFG #HBL8300BL
$38.25 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, Blue, Single Pack.
HESCO Part Number
HUBHBL8300BL
UPC
783585176604
Manufacturer Part Number
HBL8300BL
Manufacturer
Hubbell Wiring Device
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, Blue, Single Pack
MFG #HBL8300BL
Product Description:
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, Blue, Single Pack.
HESCO Part Number
HUBHBL8300BL
UPC
783585176604
Manufacturer Part Number
HBL8300BL
Manufacturer
Hubbell Wiring Device
$38.25 / E
EACH
EACH
- Features
- Specifications
- Resources
- Deep body design with circuit ID face
- Patented ground contact provides redundant grounding
- Unique bypass contact design
- Self Grounding
Specifications
| Country of Origin | : | US |
| Dimensions | : | 3.28 in x 1.65 in x 1.19 in |
| Each - Width | : | 1.900 in |
| Height | : | 1.19 in |
| Industry Standard(s) | : | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Length | : | 3.28 in |
| Amperage Rating | : | 20 A |
| Application | : | Extra Heavy Duty Hospital Grade |
| Color | : | Blue |
| Dielectric Strength | : | Withstands 2,000V minimum |
| NEMA Rating | : | 5-20R |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Phase | : | Single Phase |
| Size | : | 3.28 in x 1.65 in x 1.19 in |
| Special Features | : | Self Grounding |
| Standard | : | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Type | : | Receptacle |
| Voltage Rating | : | 125 V |
| Wattage | : | 2500 W |
| Wire Size | : | #12 AWG to #10 AWG |
| Weight | : | 0.25 lb. |
| Width | : | 1.65 in |
| Connectivity | : | Back and Side Wired Screw Terminals |
| Nema Rating | : | 5-20R |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | : | Thermoplastic Polyester Face |
| Class Code | : | A04 |
| Description - Invoice | : | RCPT, DUP HOSP GR 20A 125V BLUE |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536698000 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A04A040 |
| Material - Mounting Hardware | : | Screw Mounting |
| Material | : | Thermoplastic |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 3.600x9.900x4.600 (in) |
| Carton - Gross Weight per Pack | : | 4.750 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783585176604 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 100 EA |
| Case Weight | : | 30.000 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet Height | : | 38.800 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 1080.000 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
