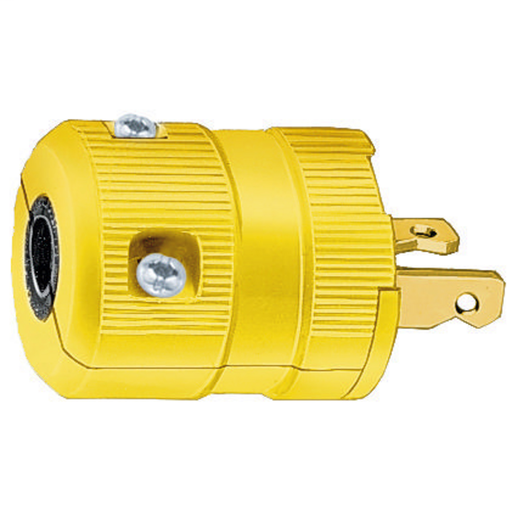

Straight Blade Devices, 20A, 250V, 2 Pole, 2 Wire Non-Grounding, HBL9758VY
MFG #HBL9758VY
$30.95 / E
EACH
EACH
HESCO Part Number
HUBHBL9758VY
UPC
783585013312
Manufacturer Part Number
HBL9758VY
Manufacturer
Hubbell Wiring Device
Straight Blade Devices, 20A, 250V, 2 Pole, 2 Wire Non-Grounding, HBL9758VY
MFG #HBL9758VY
HESCO Part Number
HUBHBL9758VY
UPC
783585013312
Manufacturer Part Number
HBL9758VY
Manufacturer
Hubbell Wiring Device
$30.95 / E
EACH
EACH
- Features
- Specifications
- Hinged one piece body design for easy assembly
- UL Listed to UL498 File E1706
- Powerful cord grips prevent conductor slippage and strain
- CSA Certified to C22.2 No. 42 File 280C
- NEMA® WD-6 Compliant
Ordering Information
| Description | : | Yellow nylon |
| Cord Diameter | : | .220"-.660"(5.6-16.8) |
Electrical | ||
| Current Interrupting | : | Certified for current interrupting at full rated current |
| Dielectric Voltage | : | Withstands 2,000V minimum |
Mechanical | ||
| Product Identification | : | Molded Rating on Device Face |
| Terminal Accommodation | : | #16-#10 AWG stranded copper wire only |
| Terminal Identification | : | Terminals identified in accordance with UL 498 and CSA |
Environmental | ||
| Flammability | : | UL 94 HB or better |
| IP Suitability | : | IP20 |
| Operating Temperatures | : | Maximum continuous 75°C; minimum -40°C (w/o impact) |
Specifications | ||
| Housing | : | Nylon |
| Blades | : | Brass |
| Assembly Screws | : | Plated Steel |
| Cable Inserts | : | PPO |
| Terminal Screws | : | Brass |
| Terminal Clamp | : | Nickel plated steel |
