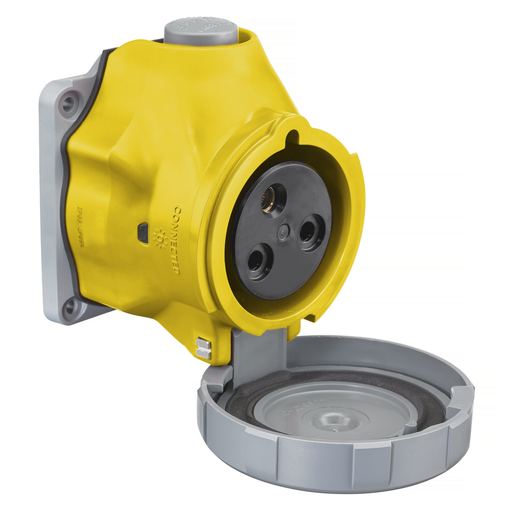

IEC Pin and Sleeve Switched Receptacle 30A, Watertight
MFG #HBLS330R4W
$744.00 / E
EACH
EACH
Product Description:
Heavy Duty IEC Pin and Sleeve Switched, IEC 309,Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, NEMA 4X/IP67,Watertight
HESCO Part Number
HUBHBLS330R4W
UPC
783585550381
Manufacturer Part Number
HBLS330R4W
Manufacturer
Hubbell Wiring Device
IEC Pin and Sleeve Switched Receptacle 30A, Watertight
MFG #HBLS330R4W
Product Description:
Heavy Duty IEC Pin and Sleeve Switched, IEC 309,Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, NEMA 4X/IP67,Watertight
HESCO Part Number
HUBHBLS330R4W
UPC
783585550381
Manufacturer Part Number
HBLS330R4W
Manufacturer
Hubbell Wiring Device
$744.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
| Country of Origin | : | US |
| Width | : | 5.250 in |
| Each - Width | : | 5.250 in |
| Amperage Rating | : | 30 A |
| Color | : | Yellow |
| Number of Poles | : | 2-Pole |
| Number of Wires | : | 3-Wire |
| Type | : | Watertight Receptacle |
| Voltage Rating | : | 125 VAC |
| Number Of Poles | : | 2-Pole |
| Number Of Wires | : | 3-Wire |
| Style | : | IP69k NEMA 4X |
| Class Code | : | A12 |
| Description - Invoice | : | PS, IEC, SW RECP, 2P3W, 30A 125V, WT |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536694020 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Sub Class Code | : | A12A180 |
| Series | : | Advantage® Switch-Rated |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 6.745x24.555x11.625 (in) |
| Carton - Gross Weight per Pack | : | 17.550 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783585550381 |
| Carton - Total Units | : | 10 EA |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
