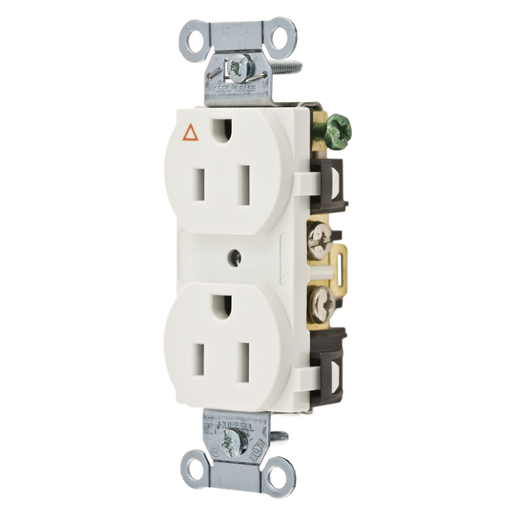

IG Receptacles IG15CRWHI
MFG #IG15CRWHI
$9.15 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Corrosion Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired, Orange.
HESCO Part Number
HUBIG15CRWHI
UPC
783585147574
Manufacturer Part Number
IG15CRWHI
Manufacturer
Hubbell Wiring Device
IG Receptacles IG15CRWHI
MFG #IG15CRWHI
Product Description:
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Corrosion Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired, Orange.
HESCO Part Number
HUBIG15CRWHI
UPC
783585147574
Manufacturer Part Number
IG15CRWHI
Manufacturer
Hubbell Wiring Device
$9.15 / E
EACH
EACH
- Features
- Specifications
- Resources
- Triangle marking on face indicates isolated ground
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Certified to CSA C22.2, No. 42
- Smooth face
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Fed. Spec. W-C-596
- Triple wipe contacts
- Environmental - Flammability - UL 94 V-2
- NEMA® WD-6 Compliant
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- UL Listed to UL498 File No. E2186
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dimensions
Dimensions | : | 1.32 in x 0.83 in x 3.28 in |
Display Size | : | Standard Sized Product |
Height | : | 3.28 in |
Length | : | 1.32 in |
Width | : | 0.83 in |
Certifications and Compliance | ||
Nema Rating | : | 5-15R |
Conductor Related | ||
Number Of Wires | : | 3-Wire |
Wire Size | : | #14 AWG to #10 AWG |
General | ||
Application | : | Commercial Specification Grade |
Color | : | White |
Environmental Conditions | : | Indoor Dry Unless Protected By Additional Means |
Horsepower - Maximum | : | 0.5 |
Item Type | : | Traditional Duplex |
Material | : | Nylon |
Material - Mounting Hardware | : | Screw Mounting |
Number Of Poles | : | 2-Pole |
OEM Brand Name | : | Hubbell Wiring Device-Kellems |
Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
Series | : | Commercial Specification Grade |
Style | : | Smooth Face |
Type | : | Standard Duplex |
UPC | : | 783585147574 |
Electrical Ratings | ||
Amperage Rating | : | 15 A |
Connectivity | : | Back and Side Wired Screw Terminals |
Current / Amperage Rating | : | 15 A |
Current Rating | : | 15 A |
Dielectric Strength | : | Withstands 2,000V minimum |
Phase | : | Single Phase |
Voltage Rating | : | 125 V |
Voltage Rating Description | : | 125 V |
Wattage | : | 1875 W |
Logistics | ||
Carton Quantity | : | 10 EA |
Catalog Page
Wiring A-25 Catalog page
Wiring N-18 Catalog page
Specs
Spec Sheet
Installation/Instruction Manual (IOM)
WIRING_PD1579_PD2305_INSTALLINST
Engineering Drawing
IG15CRWHI AutoCAD Drawing
Sales Drawings
WDK_IG15CR_DRAWING_PDF


Specs

Installation/Instruction Manual (IOM)

Engineering Drawing

Sales Drawings

- Triangle marking on face indicates isolated ground
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Certified to CSA C22.2, No. 42
- Smooth face
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Fed. Spec. W-C-596
- Triple wipe contacts
- Environmental - Flammability - UL 94 V-2
- NEMA® WD-6 Compliant
- Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
- UL Listed to UL498 File No. E2186
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dimensions
Dimensions : 1.32 in x 0.83 in x 3.28 in Display Size : Standard Sized Product Height : 3.28 in Length : 1.32 in Width : 0.83 in Certifications and Compliance
Nema Rating : 5-15R Conductor Related
Number Of Wires : 3-Wire Wire Size : #14 AWG to #10 AWG General
Application : Commercial Specification Grade Color : White Environmental Conditions : Indoor Dry Unless Protected By Additional Means Horsepower - Maximum : 0.5 Item Type : Traditional Duplex Material : Nylon Material - Mounting Hardware : Screw Mounting Number Of Poles : 2-Pole OEM Brand Name : Hubbell Wiring Device-Kellems Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Series : Commercial Specification Grade Style : Smooth Face Type : Standard Duplex UPC : 783585147574 Electrical Ratings
Amperage Rating : 15 A Connectivity : Back and Side Wired Screw Terminals Current / Amperage Rating : 15 A Current Rating : 15 A Dielectric Strength : Withstands 2,000V minimum Phase : Single Phase Voltage Rating : 125 V Voltage Rating Description : 125 V Wattage : 1875 W Logistics
Carton Quantity : 10 EA - Catalog Page
Wiring A-25 Catalog page
Wiring N-18 Catalog page
SpecsSpec Sheet
Installation/Instruction Manual (IOM)WIRING_PD1579_PD2305_INSTALLINST
Engineering DrawingIG15CRWHI AutoCAD Drawing
Sales DrawingsWDK_IG15CR_DRAWING_PDF
