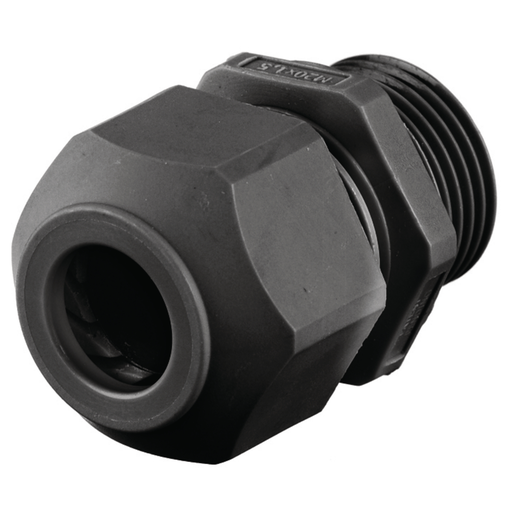

Kellems Wire Management, Cord Connectors, European Style, .18-.31", 3/8", Black
MFG #SEC38BA
$2.95Â /Â E
EACH
EACH
Product Description:
Kellems Wire Management, Cord Connectors, European Style, .18-.31", 3/8", Black
HESCO Part Number
HUBSEC38BA
UPC
783585018089
Manufacturer Part Number
SEC38BA
Manufacturer
Hubbell Wiring Device
Kellems Wire Management, Cord Connectors, European Style, .18-.31", 3/8", Black
MFG #SEC38BA
Product Description:
Kellems Wire Management, Cord Connectors, European Style, .18-.31", 3/8", Black
HESCO Part Number
HUBSEC38BA
UPC
783585018089
Manufacturer Part Number
SEC38BA
Manufacturer
Hubbell Wiring Device
$2.95Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Low profile
- Connector body is a one-piece design with machined threads
- Standard Product
Specifications
| Country of Origin | :Â Â | US |
| Width | :Â Â | 0.810 in |
| Each - Width | :Â Â | 0.810 in |
| Hub Size | :Â Â | 3/8" |
| Industry Standard(s) | :Â Â | UL Listed |
| Standards - RoHS Compliance Status | :Â Â | CM |
| Application | :Â Â | Straight Male Connector |
| Color | :Â Â | Black |
| Conductor Range | :Â Â | 0.18-0.31 in (4.6-7.9 mm) |
| NEMA Rating | :Â Â | IP66 |
| Number of Conductors | :Â Â | Single |
| Special Features | :Â Â | Standard Product |
| Standard | :Â Â | UL Listed |
| Temperature Rating | :Â Â | Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) |
| Type | :Â Â | Connector |
| Nema Rating | :Â Â | IP66 |
| Number Of Conductors | :Â Â | Single |
| Class Code | :Â Â | A52 |
| Description - Invoice | :Â Â | CORD CONN, EURO, .18"-.31"; 3/8" NPT, BK |
| Freight Class Code | :Â Â | 06168002 |
| Harmonization Code | :Â Â | 3926909989 |
| Image Actual Or Representative | :Â Â | A |
| MSDS Flag | :Â Â | No |
| Replaced Catalog Number | :Â Â | SEC38B |
| Sub Class Code | :Â Â | A52A490 |
| Material - Mounting Hardware | :Â Â | Locknut or Tapped Opening |
| Cord Diameter | :Â Â | 0.18-0.31 in |
| Material | :Â Â | Non-Metallic |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 3.700x5.300x5.400 (in) |
| Carton - Gross Weight per Pack | :Â Â | 1.150 lb. |
| Carton - Number of Sub Packs | :Â Â | 50 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 783585018089 |
| Carton - Total Units | :Â Â | 50 EA |
| Case Weight | :Â Â | 8.463 lb. |
| Each - Pack Description | :Â Â | Each |
| Lowest Level UOM | :Â Â | Each |
| Pallet - GTIN - Package | :Â Â | 70783585018088 |
| Pallet Height | :Â Â | 44.400 in |
| Pallet Length | :Â Â | 48.000 in |
| Pallet Weight | :Â Â | 525.000 lb. |
| Pallet Width | :Â Â | 40.000 in |
Certifications | ||
| EU RoHS Indicator | :Â Â | Yes |
- Low profile
- Connector body is a one-piece design with machined threads
- Standard Product
Specifications
Country of Origin :Â Â US Width :Â Â 0.810 in Each - Width :Â Â 0.810 in Hub Size :Â Â 3/8" Industry Standard(s) :Â Â UL Listed Standards - RoHS Compliance Status :Â Â CM Application :Â Â Straight Male Connector Color :Â Â Black Conductor Range :Â Â 0.18-0.31 in (4.6-7.9 mm) NEMA Rating :Â Â IP66 Number of Conductors :Â Â Single Special Features :Â Â Standard Product Standard :Â Â UL Listed Temperature Rating :Â Â Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) Type :Â Â Connector Nema Rating :Â Â IP66 Number Of Conductors :Â Â Single Class Code :Â Â A52 Description - Invoice :Â Â CORD CONN, EURO, .18"-.31"; 3/8" NPT, BK Freight Class Code :Â Â 06168002 Harmonization Code :Â Â 3926909989 Image Actual Or Representative :Â Â A MSDS Flag :Â Â No Replaced Catalog Number :Â Â SEC38B Sub Class Code :Â Â A52A490 Material - Mounting Hardware :Â Â Locknut or Tapped Opening Cord Diameter :Â Â 0.18-0.31 in Material :Â Â Non-Metallic Base Unit of Measure :Â Â EA BOX SIZE :Â Â 3.700x5.300x5.400 (in) Carton - Gross Weight per Pack :Â Â 1.150 lb. Carton - Number of Sub Packs :Â Â 50 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 783585018089 Carton - Total Units :Â Â 50 EA Case Weight :Â Â 8.463 lb. Each - Pack Description :Â Â Each Lowest Level UOM :Â Â Each Pallet - GTIN - Package :Â Â 70783585018088 Pallet Height :Â Â 44.400 in Pallet Length :Â Â 48.000 in Pallet Weight :Â Â 525.000 lb. Pallet Width :Â Â 40.000 in Certifications
EU RoHS Indicator :Â Â Yes - Downloads
