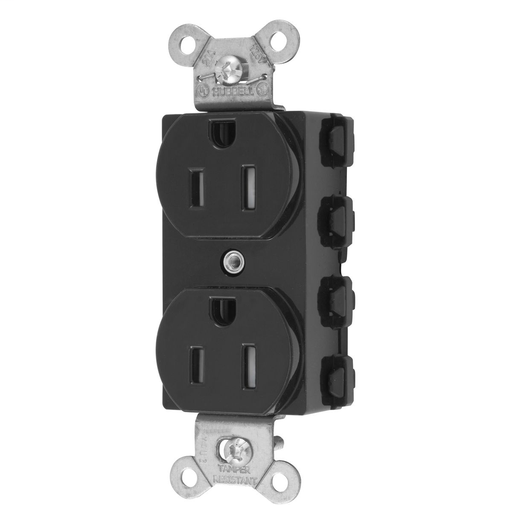

Straight Blade Devices, Receptacles, Tamper Resistant, Duplex, SNAPConnect 2, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black
MFG #SNAP5262BKTRA
$22.30 / E
EACH
EACH
Product Description:
Straight Blade Devices, Receptacles, Tamper Resistant, Duplex, SNAPConnect 2, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black.
HESCO Part Number
HUBSNAP5262BKTRA
UPC
783585552590
Manufacturer Part Number
SNAP5262BKTRA
Manufacturer
Hubbell Wiring Device
Straight Blade Devices, Receptacles, Tamper Resistant, Duplex, SNAPConnect 2, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black
MFG #SNAP5262BKTRA
Product Description:
Straight Blade Devices, Receptacles, Tamper Resistant, Duplex, SNAPConnect 2, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black.
HESCO Part Number
HUBSNAP5262BKTRA
UPC
783585552590
Manufacturer Part Number
SNAP5262BKTRA
Manufacturer
Hubbell Wiring Device
$22.30 / E
EACH
EACH
- Features
- Specifications
- Resources
- Audible SNAP, indicates solid connection
- Certified to CSA, C22.2, No. 42 File 285
- Reduces installation time
- Quick Connect- SNAPConnect, Tamper-Resistant, USA Product
- Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current
- Fed. Spec. W-C-596
- Fully insulated design
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- NEMA® WD-6 Compliant
- Environmental - Flammability - UL 94V-2
- UL Listed to UL498 File No. E2186
- Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (without impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
Specifications
| Application | : | Extra Heavy Duty Specification Grade |
| Color | : | Black |
| Horsepower - Maximum | : | 0.5 |
| Item Type | : | Traditional Duplex |
| Material | : | Nylon |
| Number Of Poles | : | 2-Pole |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Series | : | Extra Heavy Duty |
| Style | : | Smooth Face |
| Type | : | Standard Duplex |
| UPC | : | 783585552590 |
| Display Size | : | Standard Sized Product |
| Length | : | 3.28 in |
| Width | : | 1.64 in |
| Amperage Rating | : | 15 A |
| Current / Amperage Rating | : | 15 A |
| Current Rating | : | 15 A |
| Dielectric Strength | : | Withstands 2,000V minimum |
| Phase | : | Single Phase |
| Voltage Rating | : | 125 V |
| Voltage Rating Description | : | 125 V |
| Number Of Wires | : | 3-Wire |
| Wire Size | : | #12 AWG |
| Nema Rating | : | 5-15R |
| Carton Quantity | : | 10 EA |
Brochures
Brochure - SNAPConnect® Devices
Brochure - Tamper-Resistant Receptacles for Daycare
Brochure - Tamper-Resistant Receptacles for Education
Brochure - Tamper-Resistant Receptacles for Assisted Living
Sell Sheet - Industry’s Best Tamper Resistant Receptacle
Brochure - Tamper-Resistant Receptacles for Hospitality
Catalog Page
Wiring_Catalog_A14_CatPage
Brochure - SNAPConnect® DevicesBrochure - Tamper-Resistant Receptacles for DaycareBrochure - Tamper-Resistant Receptacles for EducationBrochure - Tamper-Resistant Receptacles for Assisted LivingSell Sheet - Industry’s Best Tamper Resistant ReceptacleBrochure - Tamper-Resistant Receptacles for HospitalityCatalog Page
Wiring_Catalog_A14_CatPage- Audible SNAP, indicates solid connection
- Certified to CSA, C22.2, No. 42 File 285
- Reduces installation time
- Quick Connect- SNAPConnect, Tamper-Resistant, USA Product
- Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current
- Fed. Spec. W-C-596
- Fully insulated design
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- NEMA® WD-6 Compliant
- Environmental - Flammability - UL 94V-2
- UL Listed to UL498 File No. E2186
- Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (without impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
Specifications
Application : Extra Heavy Duty Specification Grade Color : Black Horsepower - Maximum : 0.5 Item Type : Traditional Duplex Material : Nylon Number Of Poles : 2-Pole Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact Series : Extra Heavy Duty Style : Smooth Face Type : Standard Duplex UPC : 783585552590 Display Size : Standard Sized Product Length : 3.28 in Width : 1.64 in Amperage Rating : 15 A Current / Amperage Rating : 15 A Current Rating : 15 A Dielectric Strength : Withstands 2,000V minimum Phase : Single Phase Voltage Rating : 125 V Voltage Rating Description : 125 V Number Of Wires : 3-Wire Wire Size : #12 AWG Nema Rating : 5-15R Carton Quantity : 10 EA - BrochuresBrochure - SNAPConnect® DevicesBrochure - Tamper-Resistant Receptacles for DaycareBrochure - Tamper-Resistant Receptacles for EducationBrochure - Tamper-Resistant Receptacles for Assisted LivingSell Sheet - Industry’s Best Tamper Resistant ReceptacleBrochure - Tamper-Resistant Receptacles for Hospitality
Catalog PageWiring_Catalog_A14_CatPage
