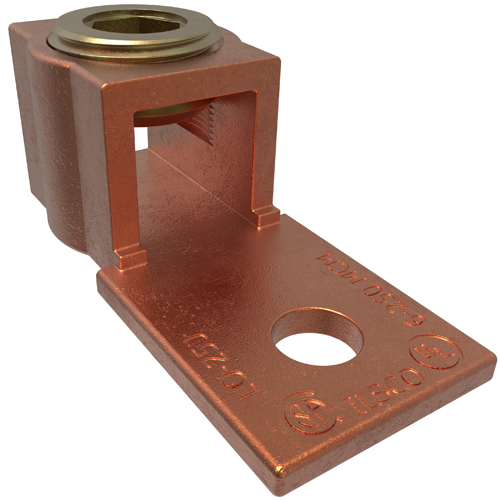

Copper Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 3/8in Bolt Size, Seamless, UL, CSA
MFG #LO-250
$0.40 / E
EACH
EACH
Product Description:
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,
HESCO Part Number
ILSLO250
UPC
0783669569834
Manufacturer Part Number
LO-250
Manufacturer
Ilsco
Copper Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 3/8in Bolt Size, Seamless, UL, CSA
MFG #LO-250
Product Description:
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,
HESCO Part Number
ILSLO250
UPC
0783669569834
Manufacturer Part Number
LO-250
Manufacturer
Ilsco
$0.40 / E
EACH
EACH
- Specifications
- Resources
Voltage
| Voltage Rating | : | 35 kV |
Dimensions | ||
| Dimension G (IN) | : | 0.437 |
| Dimension G (mm) | : | 11.0998 |
| Drive Size Main | : | 3/8 |
| Drive Type Main | : | Internal Hex |
| Height BX (IN) | : | 2 |
| Height (mm) | : | 22.352 |
| Length (mm) | : | 57.785 |
| Mounting Hole Diameter (IN) | : | 0.328 |
| Mounting Hole Diameter (mm) | : | 8.3312 |
| Tang Length (IN) | : | 1.25 |
| Tang Length (mm) | : | 31.75 |
| Tang Thickness (IN) | : | 0.125 |
| Tang Thickness (mm) | : | 3.175 |
| Tang Width (IN) | : | 0.985 |
| Tang Width (mm) | : | 25.019 |
| Weight BX (LB) | : | 5.0595 |
| Width BX (IN) | : | 6.1875 |
| Width (mm) | : | 25.019 |
Testing Standards | ||
| CSA File Number | : | LR-29601 |
| CSA Standard | : | C22.2 No. 65-03 |
| Prop65 Compliance | : | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| ROHS Indicator | : | IND |
| UL Control Number | : | 453G |
| UL / CULUS Specification | : | UL 486A/B Listed |
| UL File Number | : | E6207 |
Additional Class Attributes | ||
| Connection | : | Mechanical |
| Contains DE-OX® | : | No |
| Mounting Hole Type | : | Thru |
| Number of Conductors | : | 1 |
| Number of Mounting Holes | : | 1 |
| Number of Poles | : | 1 |
| Number of Ports / Wireways | : | 1 |
Material and Finish | ||
| Conductor Material | : | Copper |
| Material | : | Copper |
| Wire Binding Hardware Finish | : | Bright Dip |
| Wire Binding Hardware Material | : | Brass |
Conductor Ranges | ||
| Conductor Range CU Stranded (Primary, run, main, line) | : | 250 kcmil - 6 Str |
Additional Technical Specifications | ||
| Conductor Type | : | Stranded |
General | ||
| Bag Quantity | : | 1 |
| Carton Quantity Description | : | STD PACK QTY 25 |
| Direct Burial | : | No |
| Dual Rated | : | No |
| NEMA Code | : | S-588-3 |
| UPC Code | : | 78366956983 |
Specifications | ||
| Height | : | 0.88 in | 22.352 mm |
| Length | : | 2.275 in | 57.785 mm |
| Weight | : | 0.196 lbs |
| Width | : | 0.985 in | 25.019 mm |
Bolt and Screw Sizes | ||
| Mounting Bolt/Stud Size | : | 5/16 |
| Number of Wire Binding Screws per Port | : | 1 |
| Wire Binding Screw Size | : | 13/16 |
| Wire Binding Torque | : | 375 |
Color | ||
| Color | : | Copper |
Environment and Temperature | ||
| Temperature Rating | : | 90°C |
Voltage
Voltage Rating : 35 kV Dimensions
Dimension G (IN) : 0.437 Dimension G (mm) : 11.0998 Drive Size Main : 3/8 Drive Type Main : Internal Hex Height BX (IN) : 2 Height (mm) : 22.352 Length (mm) : 57.785 Mounting Hole Diameter (IN) : 0.328 Mounting Hole Diameter (mm) : 8.3312 Tang Length (IN) : 1.25 Tang Length (mm) : 31.75 Tang Thickness (IN) : 0.125 Tang Thickness (mm) : 3.175 Tang Width (IN) : 0.985 Tang Width (mm) : 25.019 Weight BX (LB) : 5.0595 Width BX (IN) : 6.1875 Width (mm) : 25.019 Testing Standards
CSA File Number : LR-29601 CSA Standard : C22.2 No. 65-03 Prop65 Compliance : This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation ROHS Indicator : IND UL Control Number : 453G UL / CULUS Specification : UL 486A/B Listed UL File Number : E6207 Additional Class Attributes
Connection : Mechanical Contains DE-OX® : No Mounting Hole Type : Thru Number of Conductors : 1 Number of Mounting Holes : 1 Number of Poles : 1 Number of Ports / Wireways : 1 Material and Finish
Conductor Material : Copper Material : Copper Wire Binding Hardware Finish : Bright Dip Wire Binding Hardware Material : Brass Conductor Ranges
Conductor Range CU Stranded (Primary, run, main, line) : 250 kcmil - 6 Str Additional Technical Specifications
Conductor Type : Stranded General
Bag Quantity : 1 Carton Quantity Description : STD PACK QTY 25 Direct Burial : No Dual Rated : No NEMA Code : S-588-3 UPC Code : 78366956983 Specifications
Height : 0.88 in | 22.352 mm Length : 2.275 in | 57.785 mm Weight : 0.196 lbs Width : 0.985 in | 25.019 mm Bolt and Screw Sizes
Mounting Bolt/Stud Size : 5/16 Number of Wire Binding Screws per Port : 1 Wire Binding Screw Size : 13/16 Wire Binding Torque : 375 Color
Color : Copper Environment and Temperature
Temperature Rating : 90°C - Information Sheet
