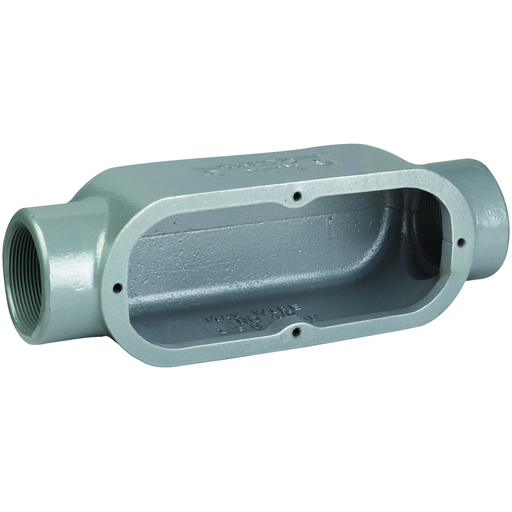

2" C Hub, Iron Form 8 Conduit Body
MFG #C68
$198.19 / E
EACH
EACH
Product Description:
2" C Hub, Iron Form 8 Conduit Body
HESCO Part Number
KILC68
UPC
783936481029
Manufacturer Part Number
C68
Manufacturer
Killark
2" C Hub, Iron Form 8 Conduit Body
MFG #C68
Product Description:
2" C Hub, Iron Form 8 Conduit Body
HESCO Part Number
KILC68
UPC
783936481029
Manufacturer Part Number
C68
Manufacturer
Killark
$198.19 / E
EACH
EACH
- Features
- Specifications
- Resources
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
| Special Features | : | Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Gray |
| Country of Origin | : | MX |
| Dimensions | : | 14 in x 7 in x 5.25 in |
| Each - Width | : | 7.000 in |
| Hazardous Rating(s) | : | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Height | : | 5.25 in |
| Hub Size | : | 2" |
| Length | : | 14 in |
| Width | : | 7 in |
| Application | : | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Type | : | Conduit Body |
| Class Code | : | D30 |
| Description - Invoice | : | COND BODY, DURALOY8 FE 2" |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7307110200 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 49 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D230 |
| CSA File Number | : | LR11852 |
| Gross Weight with Packaging | : | 7.77 |
| Hub Pattern | : | C |
| UL File Number | : | E3397 |
| Material | : | Iron |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936481029 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
Special Features : Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i ARRA Compliant : Contact Manufacturer Color : Gray Country of Origin : MX Dimensions : 14 in x 7 in x 5.25 in Each - Width : 7.000 in Hazardous Rating(s) : Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). Height : 5.25 in Hub Size : 2" Length : 14 in Width : 7 in Application : To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. Type : Conduit Body Class Code : D30 Description - Invoice : COND BODY, DURALOY8 FE 2" Freight Class Code : 06316009 Harmonization Code : 7307110200 Image Actual Or Representative : R Lead Time : 49 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D230 CSA File Number : LR11852 Gross Weight with Packaging : 7.77 Hub Pattern : C UL File Number : E3397 Material : Iron Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936481029 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec Sheet
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceC68 Engineering Drawing
