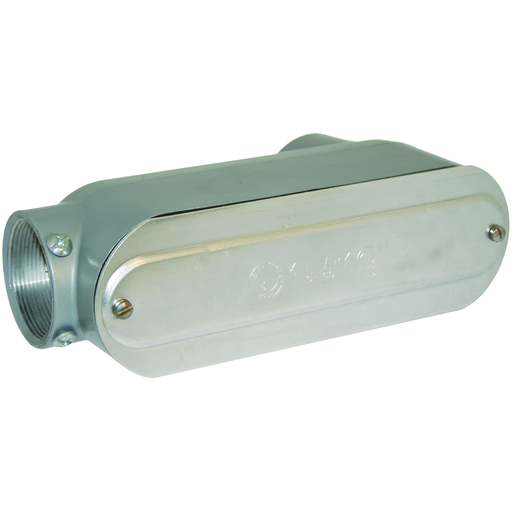

2" LB Hub, Aluminum Combo Conduit Body
MFG #COLB-6CG
$256.51Â /Â E
EACH
EACH
Product Description:
2" LB Hub, Aluminum Combo Conduit Body
HESCO Part Number
KILCOLB6CG
UPC
783936067704
Manufacturer Part Number
COLB-6CG
Manufacturer
Killark
2" LB Hub, Aluminum Combo Conduit Body
MFG #COLB-6CG
Product Description:
2" LB Hub, Aluminum Combo Conduit Body
HESCO Part Number
KILCOLB6CG
UPC
783936067704
Manufacturer Part Number
COLB-6CG
Manufacturer
Killark
$256.51Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 70 cu. in.
Specifications
| Country of Origin | :Â Â | US |
| Dimensions | :Â Â | 10 in x 4 in x 5 in |
| Each - Width | :Â Â | 4.000 in |
| Application | :Â Â | To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit. |
| Color | :Â Â | Gray |
| Height | :Â Â | 5 in |
| Hub Size | :Â Â | 2" |
| Length | :Â Â | 10 in |
| Special Features | :Â Â | Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 70 cu. in. |
| Type | :Â Â | Conduit Body With Cover & Gasket |
| Width | :Â Â | 4 in |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D30 |
| Description - Invoice | :Â Â | COMBO LB CONUDIT BODY AL,CVR,GASK 2" |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7609000000 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 42 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D30D231 |
| CSA File Number | :Â Â | LR11852 |
| Gross Weight with Packaging | :Â Â | 2.37 |
| Hub Pattern | :Â Â | LB |
| UL File Number | :Â Â | E3397 |
| Material | :Â Â | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | :Â Â | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936067704 |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 70 cu. in.
Specifications
Country of Origin :Â Â US Dimensions :Â Â 10 in x 4 in x 5 in Each - Width :Â Â 4.000 in Application :Â Â To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit. Color :Â Â Gray Height :Â Â 5 in Hub Size :Â Â 2" Length :Â Â 10 in Special Features :Â Â Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 70 cu. in. Type :Â Â Conduit Body With Cover & Gasket Width :Â Â 4 in ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D30 Description - Invoice :Â Â COMBO LB CONUDIT BODY AL,CVR,GASK 2" Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7609000000 Image Actual Or Representative :Â Â R Lead Time :Â Â 42 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Sub Class Code :Â Â D30D231 CSA File Number :Â Â LR11852 Gross Weight with Packaging :Â Â 2.37 Hub Pattern :Â Â LB UL File Number :Â Â E3397 Material :Â Â Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure :Â Â EA Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936067704 Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset Reference
