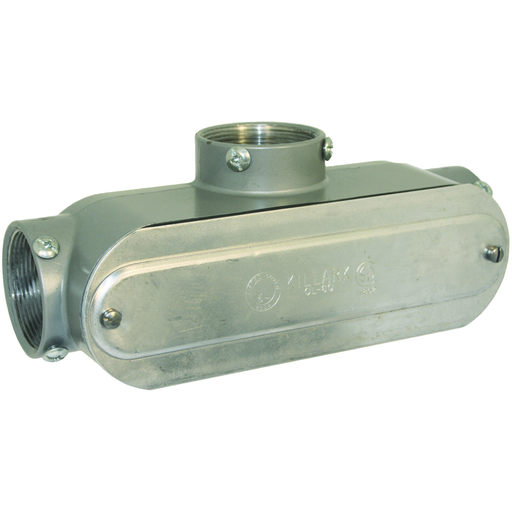

1-1/4" T Hub, Aluminum Combo Conduit Body
MFG #COT-4CG
$150.38Â /Â E
EACH
EACH
Product Description:
1-1/4" T Hub, Aluminum Combo Conduit Body
HESCO Part Number
KILCOT4CG
UPC
783936067803
Manufacturer Part Number
COT-4CG
Manufacturer
Killark
1-1/4" T Hub, Aluminum Combo Conduit Body
MFG #COT-4CG
Product Description:
1-1/4" T Hub, Aluminum Combo Conduit Body
HESCO Part Number
KILCOT4CG
UPC
783936067803
Manufacturer Part Number
COT-4CG
Manufacturer
Killark
$150.38Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in.
Specifications
| Country of Origin | :Â Â | MX |
| Dimensions | :Â Â | 10 in x 4 in x 3 in |
| Each - Width | :Â Â | 4.000 in |
| Application | :Â Â | To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit. |
| Color | :Â Â | Gray |
| Height | :Â Â | 3 in |
| Hub Size | :Â Â | 1-1/4" |
| Length | :Â Â | 10 in |
| Special Features | :Â Â | Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in. |
| Type | :Â Â | Conduit Body With Cover & Gasket |
| Width | :Â Â | 4 in |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D30 |
| Description - Invoice | :Â Â | COMBO T CONDUIT BODY AL, CVR,GASK 1 1/4" |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7609000000 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 49 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 2 EA |
| Returnable Indicator | :Â Â | No |
| Sub Class Code | :Â Â | D30D231 |
| CSA File Number | :Â Â | LR11852 |
| Gross Weight with Packaging | :Â Â | 1.97 |
| Hub Pattern | :Â Â | T |
| UL File Number | :Â Â | E3397 |
| Material | :Â Â | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 3.000x10.000x4.000 (in) |
| Carton - Gross Weight per Pack | :Â Â | 15.680 lb. |
| Carton - Number of Sub Packs | :Â Â | 5 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936067803 |
| Carton - Total Units | :Â Â | 5 EA |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in.
Specifications
Country of Origin :Â Â MX Dimensions :Â Â 10 in x 4 in x 3 in Each - Width :Â Â 4.000 in Application :Â Â To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit. Color :Â Â Gray Height :Â Â 3 in Hub Size :Â Â 1-1/4" Length :Â Â 10 in Special Features :Â Â Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in. Type :Â Â Conduit Body With Cover & Gasket Width :Â Â 4 in ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D30 Description - Invoice :Â Â COMBO T CONDUIT BODY AL, CVR,GASK 1 1/4" Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7609000000 Image Actual Or Representative :Â Â R Lead Time :Â Â 49 wk MSDS Flag :Â Â No Order Multiple :Â Â 2 EA Returnable Indicator :Â Â No Sub Class Code :Â Â D30D231 CSA File Number :Â Â LR11852 Gross Weight with Packaging :Â Â 1.97 Hub Pattern :Â Â T UL File Number :Â Â E3397 Material :Â Â Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure :Â Â EA BOX SIZE :Â Â 3.000x10.000x4.000 (in) Carton - Gross Weight per Pack :Â Â 15.680 lb. Carton - Number of Sub Packs :Â Â 5 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936067803 Carton - Total Units :Â Â 5 EA Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset Reference
