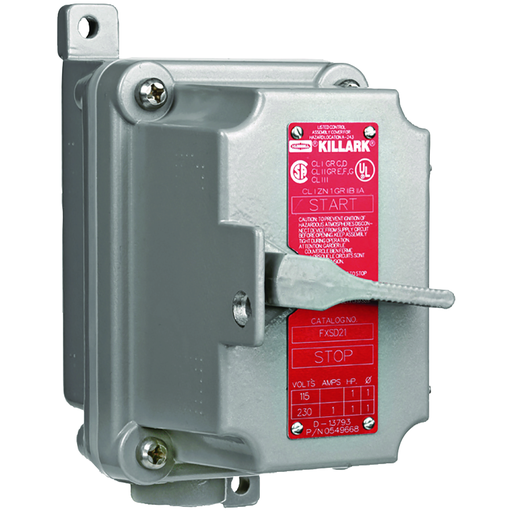

FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 3/4 Inch - 20A
MFG #FXS-21C
$438.50 / E
Each
Each
Product Description:
FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 3/4 Inch - 20A
HESCO Part Number
KILFXS21C
UPC
783936195070
Manufacturer Part Number
FXS-21C
Manufacturer
Killark
FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 3/4 Inch - 20A
MFG #FXS-21C
$438.50 / E
Each
Each
Product Description:
FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 3/4 Inch - 20A
HESCO Part Number
KILFXS21C
UPC
783936195070
Manufacturer Part Number
FXS-21C
Manufacturer
Killark
FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 3/4 Inch - 20A
MFG #FXS-21C
Product Description:
FXS Series - Aluminum Dead-End 1-Pole Tumbler Switch Unit - Factory Sealed - Hub Size 3/4 Inch - 20A
HESCO Part Number
KILFXS21C
UPC
783936195070
Manufacturer Part Number
FXS-21C
Manufacturer
Killark
$438.50 / E
Each
Each
- Features
- Specifications
- Resources
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splicebox.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
| Back Box Type | : | FXB |
| Buy American Compliant | : | Contact Manufacturer |
| Country of Origin | : | CN |
| Depth | : | 3.15 |
| Dimensions | : | 6.5 in x 6.125 in x 4.75 in |
| Each - Height | : | 4.750 in |
| Each - Length | : | 6.500 in |
| Each - Width | : | 6.125 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | : | 4.75 in |
| Length | : | 6.5 in |
| Action | : | SP |
| Actuator | : | Lever |
| Amperage Rating | : | 20 A |
| Application | : | FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings. |
| Color | : | Gray |
| Number of Poles | : | 1 |
| Size | : | 6.5 in x 6.125 in x 4.75 in |
| Special Features | : | Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Type | : | Factory Sealed |
| Width | : | 6.125 in |
| Ambient Temp. Range | : | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
| Frequency Rating | : | 50/60 Hz |
| Nema Rating | : | 3 |
| Number Of Poles | : | 1 |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D25 |
| Description - Invoice | : | TUMBL SWITCH 3/4" 1P20A DEAD |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8536509040 |
| IDW Flag | : | No |
| IGCC | : | 5200 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 15 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D25D250 |
| CSA File Number | : | LR11712 |
| Gross Weight with Packaging | : | 4.4 |
| UL File Number | : | E53360, E10501 |
| Series | : | FXS |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
