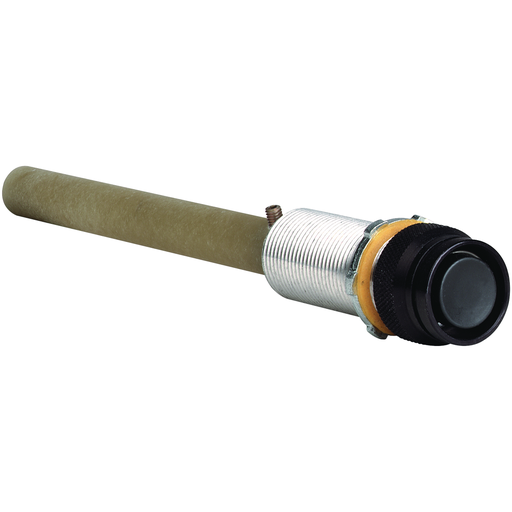

G Series - Aluminum Long Reset Operator With 6 Inch Fiber Extension -"Reset"/Blank Nameplate
MFG #GO-RST
$98.19 / e
Each
Each
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGORST
UPC
783936223650
Manufacturer Part Number
GO-RST
Manufacturer
Killark
G Series - Aluminum Long Reset Operator With 6 Inch Fiber Extension -"Reset"/Blank Nameplate
MFG #GO-RST
$98.19 / e
Each
Each
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGORST
UPC
783936223650
Manufacturer Part Number
GO-RST
Manufacturer
Killark
G Series - Aluminum Long Reset Operator With 6 Inch Fiber Extension -"Reset"/Blank Nameplate
MFG #GO-RST
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGORST
UPC
783936223650
Manufacturer Part Number
GO-RST
Manufacturer
Killark
$98.19 / e
Each
Each
- Features
- Specifications
- Resources
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
| Buy American Compliant | : | Contact Manufacturer |
| Country of Origin | : | US |
| Dimensions | : | 6.31 in x 2.25 in x 1.25 in |
| Each - Height | : | 1.250 in |
| Each - Length | : | 6.310 in |
| Each - Width | : | 2.250 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | : | 1.25 in |
| Length | : | 6.31 in |
| Action | : | SP |
| Actuator | : | Pushbutton |
| Application | : | G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. |
| Number of Poles | : | 1 |
| Size | : | 6.31 in x 2.25 in x 1.25 in |
| Special Features | : | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
| Type | : | Specialty |
| Width | : | 2.25 in |
| Ambient Temp. Range | : | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
| Nema Rating | : | 3, 4, 4X |
| Number Of Poles | : | 1 |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D25 |
| Description - Invoice | : | RESET OPERATOR GP B NEMA 4 |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8538908180 |
| IDW Flag | : | No |
| IGCC | : | 5210 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 10 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D25D250 |
| CSA File Number | : | LR11714 |
| Gross Weight with Packaging | : | 0.46 |
| Series | : | GO |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Buy American Compliant : Contact Manufacturer Country of Origin : US Dimensions : 6.31 in x 2.25 in x 1.25 in Each - Height : 1.250 in Each - Length : 6.310 in Each - Width : 2.250 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 1.25 in Length : 6.31 in Action : SP Actuator : Pushbutton Application : G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. Number of Poles : 1 Size : 6.31 in x 2.25 in x 1.25 in Special Features : Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified Type : Specialty Width : 2.25 in Ambient Temp. Range : UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C Nema Rating : 3, 4, 4X Number Of Poles : 1 ARRA Compliant : Contact Manufacturer Class Code : D25 Description - Invoice : RESET OPERATOR GP B NEMA 4 Freight Class Code : 06316009 Harmonization Code : 8538908180 IDW Flag : No IGCC : 5210 Image Actual Or Representative : R Lead Time : 10 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D250 CSA File Number : LR11714 Gross Weight with Packaging : 0.46 Series : GO Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetCustomer Notices Asset Reference 1
