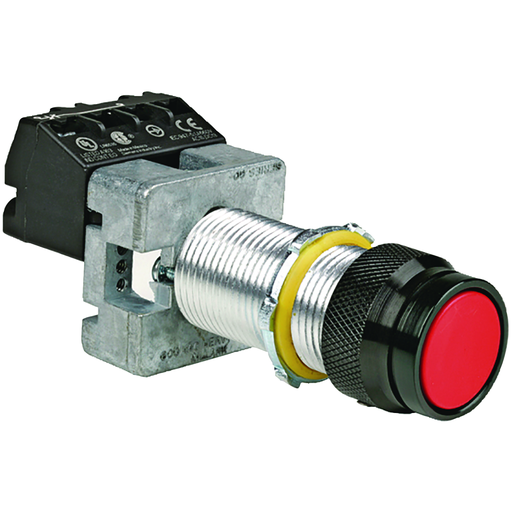

G Series - Aluminum Long Momentary Contact Single Push Button Operator -Red Button With "Start"/"Stop" Nameplate - 1NC Contact Rating
MFG #GO1-RX2B N34
$273.01 / E
EACH
EACH
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGO1RX2BN34
UPC
783936221502
Manufacturer Part Number
GO1-RX2B N34
Manufacturer
Killark
G Series - Aluminum Long Momentary Contact Single Push Button Operator -Red Button With "Start"/"Stop" Nameplate - 1NC Contact Rating
MFG #GO1-RX2B N34
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGO1RX2BN34
UPC
783936221502
Manufacturer Part Number
GO1-RX2B N34
Manufacturer
Killark
$273.01 / E
EACH
EACH
- Features
- Specifications
- Resources
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
| Number of Poles | : | 1 |
| Size | : | 2.25 in x 6.625 in x 1.75 in |
| Special Features | : | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
| ARRA Compliant | : | Contact Manufacturer |
| Country of Origin | : | US |
| Dimensions | : | 2.25 in x 6.625 in x 1.75 in |
| Each - Width | : | 6.625 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | : | 1.75 in |
| Length | : | 2.25 in |
| Width | : | 6.625 in |
| Action | : | Momentary |
| Actuator | : | Single Pushbutton |
| Ambient Temp. Range | : | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
| Amperage Rating | : | 10 A |
| Application | : | G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. |
| Contact Rating | : | 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC. |
| Frequency Rating | : | 50/60 Hz |
| Nema Rating | : | 3, 4, 4X |
| Number Of Poles | : | 1 |
| Type | : | Push Button |
| Class Code | : | D25 |
| Description - Invoice | : | OM PB LONG RED 1NC CONTACT |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8536509901 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 10 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D25D250 |
| CSA File Number | : | LR11714 |
| Gross Weight with Packaging | : | 0.58 |
| UL File Number | : | E12379 |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936221502 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Number of Poles : 1 Size : 2.25 in x 6.625 in x 1.75 in Special Features : Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified ARRA Compliant : Contact Manufacturer Country of Origin : US Dimensions : 2.25 in x 6.625 in x 1.75 in Each - Width : 6.625 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 1.75 in Length : 2.25 in Width : 6.625 in Action : Momentary Actuator : Single Pushbutton Ambient Temp. Range : UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C Amperage Rating : 10 A Application : G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. Contact Rating : 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC. Frequency Rating : 50/60 Hz Nema Rating : 3, 4, 4X Number Of Poles : 1 Type : Push Button Class Code : D25 Description - Invoice : OM PB LONG RED 1NC CONTACT Freight Class Code : 06316009 Harmonization Code : 8536509901 Image Actual Or Representative : R Lead Time : 10 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D250 CSA File Number : LR11714 Gross Weight with Packaging : 0.58 UL File Number : E12379 Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936221502 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
