Killark

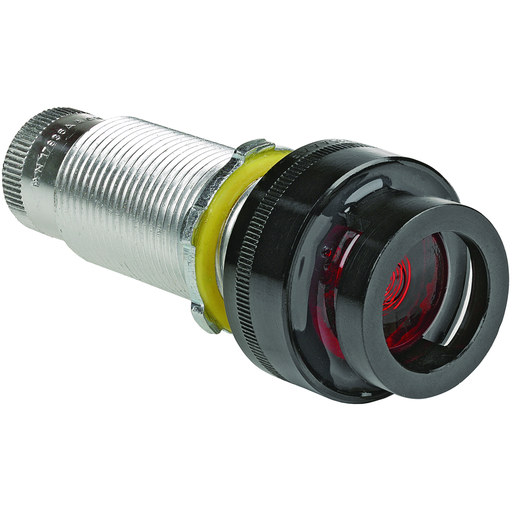

G Series - Aluminum Long 110V LED Pilot Light Operator - Red Lens With Blank Nameplate
MFG #GOB3-R23C N34 LED
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGOB3R23CN34LED
UPC
783936225289
Manufacturer Part Number
GOB3-R23C N34 LED
Manufacturer
Killark
Killark
G Series - Aluminum Long 110V LED Pilot Light Operator - Red Lens With Blank Nameplate
MFG #GOB3-R23C N34 LED
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGOB3R23CN34LED
UPC
783936225289
Manufacturer Part Number
GOB3-R23C N34 LED
Manufacturer
Killark
- Features
- Specifications
- Resources
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
| Size | : | 6.31 in x 2.25 in x 1.25 in |
| Special Features | : | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Red |
| Country of Origin | : | US |
| Depth | : | 2-3/4 |
| Dimensions | : | 6.31 in x 2.25 in x 1.25 in |
| Each - Width | : | 2.250 in |
| Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | : | 1.25 in |
| Length | : | 6.31 in |
| Voltage Rating | : | 250 V |
| Width | : | 2.25 in |
| Actuator | : | Pilot Light |
| Ambient Temp. Range | : | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
| Amperage Rating | : | 0.025 A |
| Application | : | G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. |
| Frequency Rating | : | 50/60 Hz |
| Nema Rating | : | 3, 4, 4X |
| Operating Cycles | : | 10,000 hrs |
| Type | : | Indicator |
| Class Code | : | D25 |
| Description - Invoice | : | GOB3-R23C N34 PLT LT RED LED |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8531809999 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 10 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D25D250 |
| CSA File Number | : | LR11714 |
| Gross Weight with Packaging | : | 0.5 |
| UL File Number | : | E12379 |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936225289 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Size : 6.31 in x 2.25 in x 1.25 in Special Features : Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified ARRA Compliant : Contact Manufacturer Color : Red Country of Origin : US Depth : 2-3/4 Dimensions : 6.31 in x 2.25 in x 1.25 in Each - Width : 2.250 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 1.25 in Length : 6.31 in Voltage Rating : 250 V Width : 2.25 in Actuator : Pilot Light Ambient Temp. Range : UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C Amperage Rating : 0.025 A Application : G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. Frequency Rating : 50/60 Hz Nema Rating : 3, 4, 4X Operating Cycles : 10,000 hrs Type : Indicator Class Code : D25 Description - Invoice : GOB3-R23C N34 PLT LT RED LED Freight Class Code : 06316009 Harmonization Code : 8531809999 Image Actual Or Representative : R Lead Time : 10 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D250 CSA File Number : LR11714 Gross Weight with Packaging : 0.5 UL File Number : E12379 Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936225289 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
