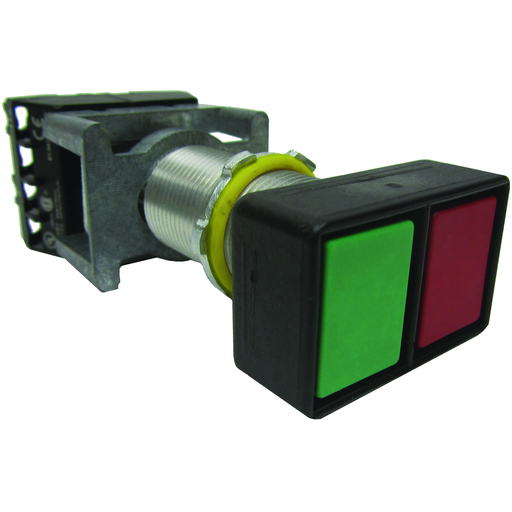

![G Series - Aluminum Long Maintained Contact Double Push Button Operator- Green And Red Buttons With "Start - Stop"/Blank Nameplate - 2NO/2NC Contact Rating](https://media.distributordatasolutions.com/325/synd_hubbell/medium/6cc20d57141e056e7a66e7a9309046db20dff7c7-medium.png)
Killark
G Series - Aluminum Long Maintained Contact Double Push Button Operator- Green And Red Buttons With "Start - Stop"/Blank Nameplate - 2NO/2NC Contact Rating
MFG #GOR11-GR8D N34
$690.36 / E
Each
Each
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGOR11GR8DN34
UPC
783936224770
Manufacturer Part Number
GOR11-GR8D N34
Manufacturer
Killark
Killark
G Series - Aluminum Long Maintained Contact Double Push Button Operator- Green And Red Buttons With "Start - Stop"/Blank Nameplate - 2NO/2NC Contact Rating
MFG #GOR11-GR8D N34
Product Description:
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
HESCO Part Number
KILGOR11GR8DN34
UPC
783936224770
Manufacturer Part Number
GOR11-GR8D N34
Manufacturer
Killark
$690.36 / E
Each
Each
- Features
- Specifications
- Resources
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Country of Origin | : | United States |
Buy American Compliant | : | Contact Manufacturer |
Dimensions | : | 6.31 in x 2.25 in x 1.25 in |
Width | : | 2.250 in |
Each - Width | : | 2.250 in |
Hazardous Rating(s) | : | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
Height | : | 1.25 in |
Length | : | 6.31 in |
Action | : | Maintained |
Actuator | : | Maintained Pushbutton |
Amperage Rating | : | 10 A |
Application | : | G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. |
Contact Rating | : | 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC. |
Number of Poles | : | 2 |
Size | : | 6.31 in x 2.25 in x 1.25 in |
Special Features | : | Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified |
Type | : | Push Button |
Ambient Temp. Range | : | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
Frequency Rating | : | 50/60 Hz |
Nema Rating | : | 3, 4, 4X |
Number Of Poles | : | 2 |
ARRA Compliant | : | Contact Manufacturer |
Class Code | : | D25 |
Description - Invoice | : | BL PB EXTD GRN/RED 2NO 2NC |
Freight Class Code | : | 06316009 |
Harmonization Code | : | 8536509035 |
Image Actual Or Representative | : | R |
Lead Time | : | 20 wk |
MSDS Flag | : | No |
Order Multiple | : | 1 EA |
Returnable Indicator | : | Yes |
Sub Class Code | : | D25D250 |
CSA File Number | : | LR11714 |
Gross Weight with Packaging | : | 0.5 |
UL File Number | : | E12379 |
Series | : | GO |
Base Unit of Measure | : | EA |
Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936224770 |
Master Pack Description | : | Each |
Certifications | ||
EU RoHS Indicator | : | Contact Manufacturer |
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Country of Origin : United States Buy American Compliant : Contact Manufacturer Dimensions : 6.31 in x 2.25 in x 1.25 in Width : 2.250 in Each - Width : 2.250 in Hazardous Rating(s) : Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height : 1.25 in Length : 6.31 in Action : Maintained Actuator : Maintained Pushbutton Amperage Rating : 10 A Application : G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures. Contact Rating : 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC. Number of Poles : 2 Size : 6.31 in x 2.25 in x 1.25 in Special Features : Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified Type : Push Button Ambient Temp. Range : UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C Frequency Rating : 50/60 Hz Nema Rating : 3, 4, 4X Number Of Poles : 2 ARRA Compliant : Contact Manufacturer Class Code : D25 Description - Invoice : BL PB EXTD GRN/RED 2NO 2NC Freight Class Code : 06316009 Harmonization Code : 8536509035 Image Actual Or Representative : R Lead Time : 20 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D25D250 CSA File Number : LR11714 Gross Weight with Packaging : 0.5 UL File Number : E12379 Series : GO Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936224770 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
