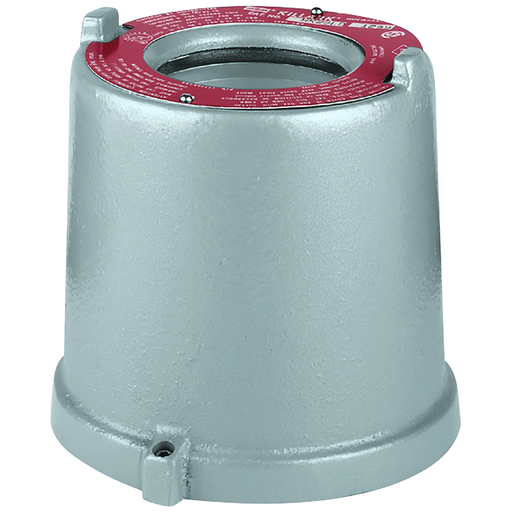

HK Series, 2" Dome Lens Cover 2-5/16 Viewing Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
MFG #HK2GLD
$225.59Â /Â E
EACH
EACH
Product Description:
HK Series, 2" Dome Lens Cover 2-5/16 Viewing Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
HESCO Part Number
KILHK2GLD
UPC
783936295343
Manufacturer Part Number
HK2GLD
Manufacturer
Killark
HK Series, 2" Dome Lens Cover 2-5/16 Viewing Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
MFG #HK2GLD
Product Description:
HK Series, 2" Dome Lens Cover 2-5/16 Viewing Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
HESCO Part Number
KILHK2GLD
UPC
783936295343
Manufacturer Part Number
HK2GLD
Manufacturer
Killark
$225.59Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Threaded glass lens screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Glass lens made of tempered sode lime.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
- Covers have shrouded tamper resistant set screws as standard.
- HK Series covers are cast from a copper-free aluminum alloy. All covers have shrouded tamper resistant set screws as standard which can help to combat excessive vibration in rugged settings. Lugs on cover permit easy removal and tightening.
Specifications
| Country of Origin | :Â Â | US |
| Dimensions | :Â Â | 6.75 in x 6 in x 4.75 in |
| Each - Width | :Â Â | 6.000 in |
| Hazardous Rating(s) | :Â Â | Class I, Divisions 1 & 2, Groups A(suffix GA) B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | :Â Â | 4.75 in |
| Application | :Â Â | Instrumentation housed in HK Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HK Series enclosures are suitable for a broad range of applications, meeting both domestic and international |
| Color | :Â Â | Gray |
| Length | :Â Â | 6.75 in |
| Size | :Â Â | 6.75 in x 6 in x 4.75 in |
| Special Features | :Â Â | HK Series covers are cast from a copper-free aluminum alloy. All covers have shrouded tamper resistant set screws as standard which can help to combat excessive vibration in rugged settings. Lugs on cover permit easy removal and tightening. |
| Type | :Â Â | Dome Lens Cover |
| Width | :Â Â | 6 in |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D25 |
| Description - Invoice | :Â Â | INSTRUMENTATION 2"GLASS DOME |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7616995190 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 15 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D25D252 |
| CSA File Number | :Â Â | LR11716 |
| Gross Weight with Packaging | :Â Â | 2.47 |
| UL File Number | :Â Â | E83696 |
| Material | :Â Â | Copper-free aluminum |
| Base Unit of Measure | :Â Â | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936295343 |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Threaded glass lens screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Glass lens made of tempered sode lime.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
- Covers have shrouded tamper resistant set screws as standard.
- HK Series covers are cast from a copper-free aluminum alloy. All covers have shrouded tamper resistant set screws as standard which can help to combat excessive vibration in rugged settings. Lugs on cover permit easy removal and tightening.
Specifications
Country of Origin :Â Â US Dimensions :Â Â 6.75 in x 6 in x 4.75 in Each - Width :Â Â 6.000 in Hazardous Rating(s) :Â Â Class I, Divisions 1 & 2, Groups A(suffix GA) B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 Height :Â Â 4.75 in Application :Â Â Instrumentation housed in HK Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HK Series enclosures are suitable for a broad range of applications, meeting both domestic and international Color :Â Â Gray Length :Â Â 6.75 in Size :Â Â 6.75 in x 6 in x 4.75 in Special Features :Â Â HK Series covers are cast from a copper-free aluminum alloy. All covers have shrouded tamper resistant set screws as standard which can help to combat excessive vibration in rugged settings. Lugs on cover permit easy removal and tightening. Type :Â Â Dome Lens Cover Width :Â Â 6 in ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D25 Description - Invoice :Â Â INSTRUMENTATION 2"GLASS DOME Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7616995190 Image Actual Or Representative :Â Â R Lead Time :Â Â 15 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Sub Class Code :Â Â D25D252 CSA File Number :Â Â LR11716 Gross Weight with Packaging :Â Â 2.47 UL File Number :Â Â E83696 Material :Â Â Copper-free aluminum Base Unit of Measure :Â Â EA Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936295343 Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCertification Document Asset Reference 1Certification Document Asset Reference 2Certification Document Asset Reference 3Customer Notices Asset Reference
