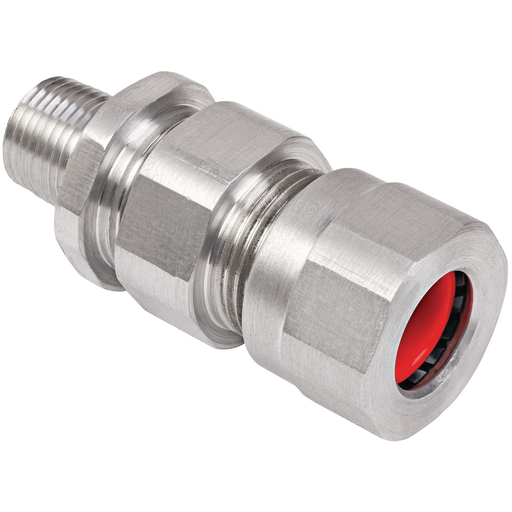

MC Series - Aluminum Cable Connector 1/2" NPT
MFG #MC1C
$44.92 / E
EACH
EACH
Product Description:
MC Series - Aluminum Cable Connector 1/2" NPT
HESCO Part Number
KILMC1C
UPC
783936960593
Manufacturer Part Number
MC1C
Manufacturer
Killark
MC Series - Aluminum Cable Connector 1/2" NPT
MFG #MC1C
Product Description:
MC Series - Aluminum Cable Connector 1/2" NPT
HESCO Part Number
KILMC1C
UPC
783936960593
Manufacturer Part Number
MC1C
Manufacturer
Killark
$44.92 / E
EACH
EACH
- Features
- Specifications
- Resources
- 360° armor grounding spring is reusable
- Copper free aluminum construction for harsh, corrosive and certain hazardous locations
- Provides sealing back nut plus inner o-ring seal to prevent moisture ingress to the cable armor and enclosure
- Robust threads and world class seal enables easy installation with minimal torque required
- 360° armor grounding spring is reuseable. Robust threads and world class seal enables easy installation with minimal torque required. Design meets and exceeds third party requirements for cable retention. Provides sealing back nut plus inner O-ring seal to prevent moisture ingress to the cable armor and enclosure. Copper-free aluminum construction for hostile, corrosive, and certain hazardous locations.
Specifications
| Finish | : | Natural |
| Size | : | 3 in x 2 in x 2 in |
| Special Features | : | 360° armor grounding spring is reuseable. Robust threads and world class seal enables easy installation with minimal torque required. Design meets and exceeds third party requirements for cable retention. Provides sealing back nut plus inner O-ring seal to prevent moisture ingress to the cable armor and enclosure. Copper-free aluminum construction for hostile, corrosive, and certain hazardous locations. |
| ARRA Compliant | : | Contact Manufacturer |
| Color | : | Silver |
| Country of Origin | : | US |
| Dimensions | : | 3 in x 2 in x 2 in |
| Each - Width | : | 2.000 in |
| Height | : | 2 in |
| Hub Size | : | 1/2" |
| Length | : | 3 in |
| Weight | : | 0.32 lb. |
| Width | : | 2 in |
| Application | : | Designed for use with jacketed interlocked, continuously corrugated and welded armor cable. Install where it is essential to provide positive grounding to the cable and for a Type 3, 4 connection. |
| Finish Type | : | Natural |
| Temperature Rating | : | -50°C to +60°C |
| Type | : | Cable Gland |
| Class Code | : | D30 |
| Description - Invoice | : | MC FITTING AL 1/2" NPT |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 8546909900 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 42 wk |
| MSDS Flag | : | Yes |
| Order Multiple | : | 1 EA |
| Replaced Catalog Number | : | CMCAA050 |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D238 |
| Cable Range | : | .60 - .82 in |
| Gross Weight with Packaging | : | 0.32 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 7.000x12.000x12.000 (in) |
| Carton - Gross Weight per Pack | : | 6.400 lb. |
| Carton - Number of Sub Packs | : | 10 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936960593 |
| Carton - Total Units | : | 10 EA |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- 360° armor grounding spring is reusable
- Copper free aluminum construction for harsh, corrosive and certain hazardous locations
- Provides sealing back nut plus inner o-ring seal to prevent moisture ingress to the cable armor and enclosure
- Robust threads and world class seal enables easy installation with minimal torque required
- 360° armor grounding spring is reuseable. Robust threads and world class seal enables easy installation with minimal torque required. Design meets and exceeds third party requirements for cable retention. Provides sealing back nut plus inner O-ring seal to prevent moisture ingress to the cable armor and enclosure. Copper-free aluminum construction for hostile, corrosive, and certain hazardous locations.
Specifications
Finish : Natural Size : 3 in x 2 in x 2 in Special Features : 360° armor grounding spring is reuseable. Robust threads and world class seal enables easy installation with minimal torque required. Design meets and exceeds third party requirements for cable retention. Provides sealing back nut plus inner O-ring seal to prevent moisture ingress to the cable armor and enclosure. Copper-free aluminum construction for hostile, corrosive, and certain hazardous locations. ARRA Compliant : Contact Manufacturer Color : Silver Country of Origin : US Dimensions : 3 in x 2 in x 2 in Each - Width : 2.000 in Height : 2 in Hub Size : 1/2" Length : 3 in Weight : 0.32 lb. Width : 2 in Application : Designed for use with jacketed interlocked, continuously corrugated and welded armor cable. Install where it is essential to provide positive grounding to the cable and for a Type 3, 4 connection. Finish Type : Natural Temperature Rating : -50°C to +60°C Type : Cable Gland Class Code : D30 Description - Invoice : MC FITTING AL 1/2" NPT Freight Class Code : 06316009 Harmonization Code : 8546909900 Image Actual Or Representative : R Lead Time : 42 wk MSDS Flag : Yes Order Multiple : 1 EA Replaced Catalog Number : CMCAA050 Returnable Indicator : Yes Sub Class Code : D30D238 Cable Range : .60 - .82 in Gross Weight with Packaging : 0.32 Material : Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure : EA BOX SIZE : 7.000x12.000x12.000 (in) Carton - Gross Weight per Pack : 6.400 lb. Carton - Number of Sub Packs : 10 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 00783936960593 Carton - Total Units : 10 EA Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetMSDSBrochure Asset ReferenceCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset ReferenceInstallation Manuals Asset ReferenceSDS Asset Reference
