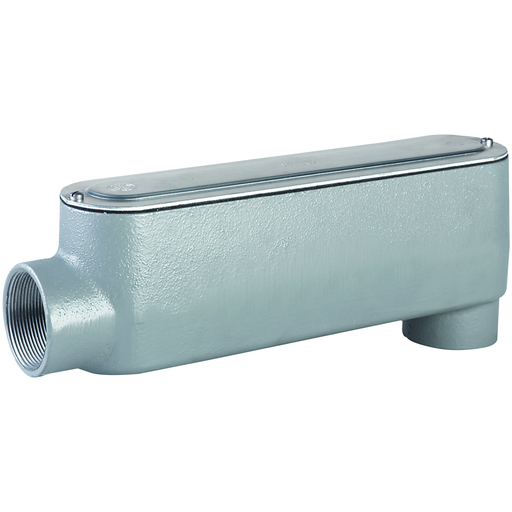

1" LB Hub, Aluminum NEC Conduit Body
MFG #NECLB-3
$107.11Â /Â E
EACH
EACH
Product Description:
1" LB Hub, Aluminum NEC Conduit Body
HESCO Part Number
KILNECLB3
UPC
783936421001
Manufacturer Part Number
NECLB-3
Manufacturer
Killark
1" LB Hub, Aluminum NEC Conduit Body
MFG #NECLB-3
Product Description:
1" LB Hub, Aluminum NEC Conduit Body
HESCO Part Number
KILNECLB3
UPC
783936421001
Manufacturer Part Number
NECLB-3
Manufacturer
Killark
$107.11Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 17 cu. in.
Specifications
| Country of Origin | :Â Â | MX |
| Dimensions | :Â Â | 9 in x 2 in x 4 in |
| Each - Width | :Â Â | 2.000 in |
| Hazardous Rating(s) | :Â Â | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | :Â Â | Specially designed to meet National Electrical Code Article 370-28(a) (2) for angle pulls where the distance between the raceway entry and the opposite wall of the fitting must be at least six times the trade diameter of the raceway. A pull box with easy |
| Color | :Â Â | Gray |
| Height | :Â Â | 4 in |
| Hub Size | :Â Â | 1" |
| Length | :Â Â | 9 in |
| Special Features | :Â Â | Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 17 cu. in. |
| Type | :Â Â | 40% Fill Conduit Body With Cover & Gasket |
| Width | :Â Â | 2 in |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | D30 |
| Description - Invoice | :Â Â | 1" 'O' SERIES (CB) |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7609000000 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 42 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D30D230 |
| Gross Weight with Packaging | :Â Â | 0.94 |
| Hub Pattern | :Â Â | LB |
| UL File Number | :Â Â | E3397 |
| Material | :Â Â | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 5.000x11.250x9.250 (in) |
| Carton - Gross Weight per Pack | :Â Â | 4.700 lb. |
| Carton - Number of Sub Packs | :Â Â | 5 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936421001 |
| Carton - Total Units | :Â Â | 5 |
| Item Package Type | :Â Â | K-PAK (cover & gasket included) |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 17 cu. in.
Specifications
Country of Origin :Â Â MX Dimensions :Â Â 9 in x 2 in x 4 in Each - Width :Â Â 2.000 in Hazardous Rating(s) :Â Â Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). Application :Â Â Specially designed to meet National Electrical Code Article 370-28(a) (2) for angle pulls where the distance between the raceway entry and the opposite wall of the fitting must be at least six times the trade diameter of the raceway. A pull box with easy Color :Â Â Gray Height :Â Â 4 in Hub Size :Â Â 1" Length :Â Â 9 in Special Features :Â Â Large cover opening (length of opening exceeds six times the trade diameter of the hub size) for easy access to conductors. Cover and gasket included. Volume is 17 cu. in. Type :Â Â 40% Fill Conduit Body With Cover & Gasket Width :Â Â 2 in ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â D30 Description - Invoice :Â Â 1" 'O' SERIES (CB) Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7609000000 Image Actual Or Representative :Â Â R Lead Time :Â Â 42 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Sub Class Code :Â Â D30D230 Gross Weight with Packaging :Â Â 0.94 Hub Pattern :Â Â LB UL File Number :Â Â E3397 Material :Â Â Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure :Â Â EA BOX SIZE :Â Â 5.000x11.250x9.250 (in) Carton - Gross Weight per Pack :Â Â 4.700 lb. Carton - Number of Sub Packs :Â Â 5 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936421001 Carton - Total Units :Â Â 5 Item Package Type :Â Â K-PAK (cover & gasket included) Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec Sheet
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceNECLB-3 Engineering Drawing
