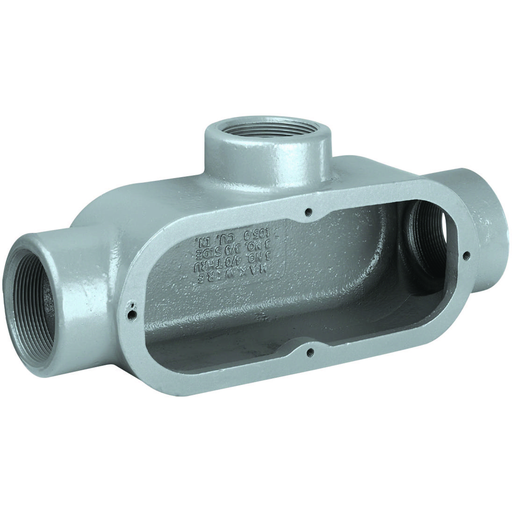

1-1/2" T Hub, Iron Form 8 Conduit Body
MFG #T58
$143.31 / E
EACH
EACH
Product Description:
1-1/2" T Hub, Iron Form 8 Conduit Body
HESCO Part Number
KILT58
UPC
783936481357
Manufacturer Part Number
T58
Manufacturer
Killark
1-1/2" T Hub, Iron Form 8 Conduit Body
MFG #T58
Product Description:
1-1/2" T Hub, Iron Form 8 Conduit Body
HESCO Part Number
KILT58
UPC
783936481357
Manufacturer Part Number
T58
Manufacturer
Killark
$143.31 / E
EACH
EACH
- Features
- Specifications
- Resources
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
| Country of Origin | : | MX |
| Dimensions | : | 13.25 in x 6.25 in x 3.375 in |
| Each - Width | : | 6.250 in |
| Hazardous Rating(s) | : | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | : | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Color | : | Gray |
| Height | : | 3.375 in |
| Hub Size | : | 1-1/2" |
| Length | : | 13.25 in |
| Special Features | : | Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i |
| Type | : | Conduit Body |
| Width | : | 6.25 in |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D30 |
| Description - Invoice | : | COND BODY,T,GRAY IRON 1 1/2" |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7307110030 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 49 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D230 |
| CSA File Number | : | LR11852 |
| Gross Weight with Packaging | : | 5.86 |
| Hub Pattern | : | T |
| UL File Number | : | E3397 |
| Material | : | Iron |
| Series | : | Duraloy 8 |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936481357 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
Country of Origin : MX Dimensions : 13.25 in x 6.25 in x 3.375 in Each - Width : 6.250 in Hazardous Rating(s) : Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). Application : To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. Color : Gray Height : 3.375 in Hub Size : 1-1/2" Length : 13.25 in Special Features : Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i Type : Conduit Body Width : 6.25 in ARRA Compliant : Contact Manufacturer Class Code : D30 Description - Invoice : COND BODY,T,GRAY IRON 1 1/2" Freight Class Code : 06316009 Harmonization Code : 7307110030 Image Actual Or Representative : R Lead Time : 49 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D230 CSA File Number : LR11852 Gross Weight with Packaging : 5.86 Hub Pattern : T UL File Number : E3397 Material : Iron Series : Duraloy 8 Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936481357 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec Sheet
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceSpecification Sheet Asset ReferenceT58 Engineering Drawing
