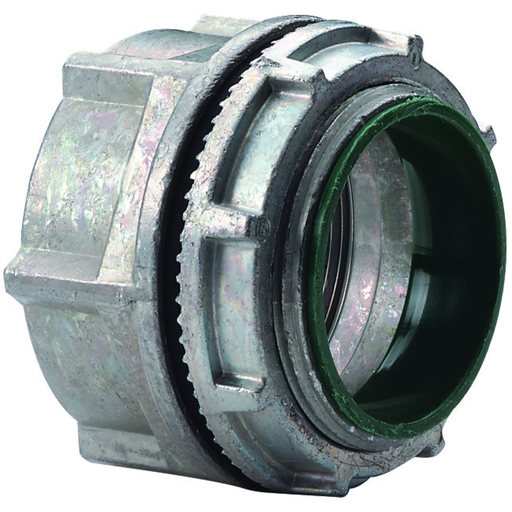

2" Zinc Weather Proof Conduit Hub
MFG #WH-6
$66.81Â /Â E
EACH
EACH
Product Description:
2" Zinc Weather Proof Conduit Hub
HESCO Part Number
KILWH6
UPC
783936841854
Manufacturer Part Number
WH-6
Manufacturer
Killark
2" Zinc Weather Proof Conduit Hub
MFG #WH-6
Product Description:
2" Zinc Weather Proof Conduit Hub
HESCO Part Number
KILWH6
UPC
783936841854
Manufacturer Part Number
WH-6
Manufacturer
Killark
$66.81Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Specifications
| Special Features | :Â Â | Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Color | :Â Â | Gray |
| Country of Origin | :Â Â | IN |
| Dimensions | :Â Â | 3.236 in x 3.236 in x 1.895 in |
| Each - Width | :Â Â | 3.236 in |
| Hazardous Rating(s) | :Â Â | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Height | :Â Â | 1.895 in |
| Hub Size | :Â Â | 2" |
| Length | :Â Â | 3.236 in |
| Width | :Â Â | 3.236 in |
| Application | :Â Â | Conduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions. |
| Type | :Â Â | Weatherproof Conduit Hub |
| Class Code | :Â Â | D30 |
| Description - Invoice | :Â Â | WEATHERPROOF CONDUIT HUB 2" |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7907009101 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Sub Class Code | :Â Â | D30D236 |
| Gross Weight with Packaging | :Â Â | 0.93 |
| Material | :Â Â | Zinc |
| Series | :Â Â | WH |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 6.000x9.000x8.750 (in) |
| Carton - Gross Weight per Pack | :Â Â | 13.950 lb. |
| Carton - Number of Sub Packs | :Â Â | 15 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00783936841854 |
| Carton - Total Units | :Â Â | 15 EA |
| Master Pack Description | :Â Â | Each |
Certifications | ||
| EU RoHS Indicator | :Â Â | Contact Manufacturer |
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Specifications
Special Features :Â Â Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit ARRA Compliant :Â Â Contact Manufacturer Color :Â Â Gray Country of Origin :Â Â IN Dimensions :Â Â 3.236 in x 3.236 in x 1.895 in Each - Width :Â Â 3.236 in Hazardous Rating(s) :Â Â Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). Height :Â Â 1.895 in Hub Size :Â Â 2" Length :Â Â 3.236 in Width :Â Â 3.236 in Application :Â Â Conduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions. Type :Â Â Weatherproof Conduit Hub Class Code :Â Â D30 Description - Invoice :Â Â WEATHERPROOF CONDUIT HUB 2" Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7907009101 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Sub Class Code :Â Â D30D236 Gross Weight with Packaging :Â Â 0.93 Material :Â Â Zinc Series :Â Â WH Base Unit of Measure :Â Â EA BOX SIZE :Â Â 6.000x9.000x8.750 (in) Carton - Gross Weight per Pack :Â Â 13.950 lb. Carton - Number of Sub Packs :Â Â 15 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00783936841854 Carton - Total Units :Â Â 15 EA Master Pack Description :Â Â Each Certifications
EU RoHS Indicator :Â Â Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset ReferenceInstallation Manuals Asset Reference
