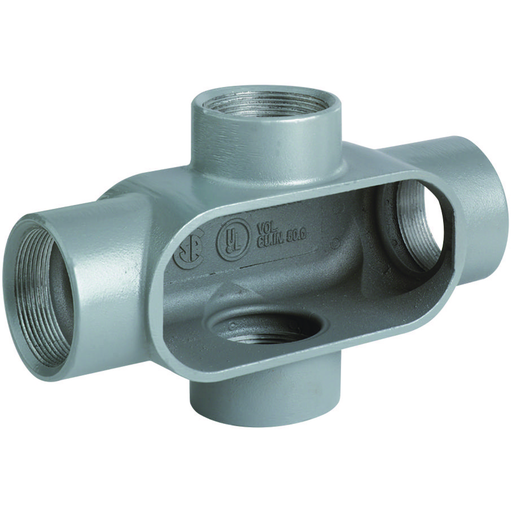

1-1/4" X Hub, Aluminum Form 7 Conduit Body,
MFG #X47SA
$124.95 / E
EACH
EACH
Product Description:
1-1/4" X Hub, Aluminum Form 7 Conduit Body,
HESCO Part Number
KILX47SA
UPC
783936080611
Manufacturer Part Number
X47SA
Manufacturer
Killark
1-1/4" X Hub, Aluminum Form 7 Conduit Body,
MFG #X47SA
Product Description:
1-1/4" X Hub, Aluminum Form 7 Conduit Body,
HESCO Part Number
KILX47SA
UPC
783936080611
Manufacturer Part Number
X47SA
Manufacturer
Killark
$124.95 / E
EACH
EACH
- Features
- Specifications
- Resources
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
| Country of Origin | : | MX |
| Dimensions | : | 9.625 in x 6 in x 3.75 in |
| Each - Width | : | 6.000 in |
| Hazardous Rating(s) | : | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Application | : | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Color | : | Gray |
| Height | : | 3.75 in |
| Hub Size | : | 1-1/4" |
| Length | : | 9.625 in |
| Special Features | : | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Type | : | Conduit Body |
| Width | : | 6 in |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D30 |
| Description - Invoice | : | 1 1/4" ALUM CONDUIT BODY "X" |
| Freight Class Code | : | 06316009 |
| Harmonization Code | : | 7609000000 |
| Image Actual Or Representative | : | R |
| Lead Time | : | 42 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Returnable Indicator | : | Yes |
| Sub Class Code | : | D30D230 |
| CSA File Number | : | LR11852 |
| Gross Weight with Packaging | : | 1.31 |
| Hub Pattern | : | X |
| UL File Number | : | E3397 |
| Material | : | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00783936080611 |
| Master Pack Description | : | Each |
Certifications | ||
| EU RoHS Indicator | : | Contact Manufacturer |
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Country of Origin : MX Dimensions : 9.625 in x 6 in x 3.75 in Each - Width : 6.000 in Hazardous Rating(s) : Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). Application : To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. Color : Gray Height : 3.75 in Hub Size : 1-1/4" Length : 9.625 in Special Features : Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl Type : Conduit Body Width : 6 in ARRA Compliant : Contact Manufacturer Class Code : D30 Description - Invoice : 1 1/4" ALUM CONDUIT BODY "X" Freight Class Code : 06316009 Harmonization Code : 7609000000 Image Actual Or Representative : R Lead Time : 42 wk MSDS Flag : No Order Multiple : 1 EA Returnable Indicator : Yes Sub Class Code : D30D230 CSA File Number : LR11852 Gross Weight with Packaging : 1.31 Hub Pattern : X UL File Number : E3397 Material : Aluminum, Copper Free (less than 4/10 of 1%) Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00783936080611 Master Pack Description : Each Certifications
EU RoHS Indicator : Contact Manufacturer - Downloads
Spec SheetCatalog Full Asset ReferenceCertification Document Asset ReferenceCustomer Notices Asset ReferenceInstallation Manuals Asset Reference
