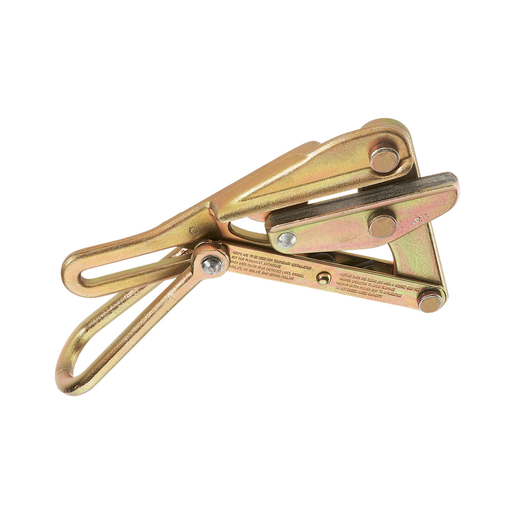

Grip for High Strength Cables 0.62-Inch
MFG #1628-16
Requires Quote
 / EACH
Product Description:
The Klein Tools 1628-16 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE162816
UPC
092644470264
Manufacturer Part Number
1628-16
Manufacturer
Klein Tools
Grip for High Strength Cables 0.62-Inch
MFG #1628-16
Product Description:
The Klein Tools 1628-16 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE162816
UPC
092644470264
Manufacturer Part Number
1628-16
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Designed for 0.31 to 0.62-Inches (7.9 to 15.7 mm) diameter cable sizes with max safe load of 15,000 (6803 kg)
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Double ''V'' grooves give four-point contact, reducing slipping and providing proper alignment of wire and cable
- Do not exceed rated capacity.
- For larger conductors, see our grips with round inside-jaw contour
- Always match proper size and type of grip to application.
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
Specifications
| Maximum Safe Load | :Â Â | 15,000 lb (6803 kg) |
| Material | :Â Â | Steel |
| Type | :Â Â | Chicago Grip |
| Cable Diameter | :Â Â | 0.31" to 0.62" (7.87 to 15.75 mm) |
| Jaw Type | :Â Â | Double V |
| Jaw Length | :Â Â | 7.25" (18.4 cm) |
| Application | :Â Â | Wire Pulling |
| Cable Type | :Â Â | Aircraft, EHS, Messenger, Guy Strand |
| Locking Handle | :Â Â | Yes |
| Hot Latch | :Â Â | No |
| Spring | :Â Â | No |
| Swing Latch | :Â Â | No |
| Teeth Type | :Â Â | Smooth |
| Height | :Â Â | 3.1500 in |
| Width | :Â Â | 6.6380 in |
| Depth | :Â Â | 12.8250 in |
| Weight | :Â Â | 13.7250 lbs |
Downloads
Spec Sheet
Video Download
Instructions
Grip_Instructions.pdf
Grip_Maintenance_Guide_139168ART.pdf
Spec SheetVideo DownloadInstructions
