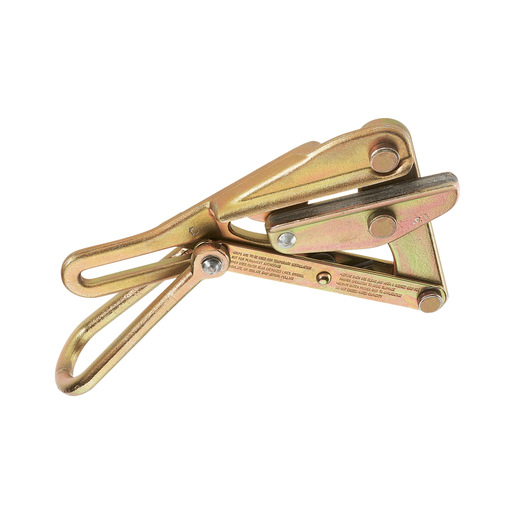

Grip for High Strength Cables 0.5 to 0.75-Inch
MFG #1628-17
$1,045.20Â /Â E
Each
Each
Product Description:
The Klein Tools 1628-17 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE162817
UPC
092644470325
Manufacturer Part Number
1628-17
Manufacturer
Klein Tools
Grip for High Strength Cables 0.5 to 0.75-Inch
MFG #1628-17
$1,045.20Â /Â E
Each
Each
Product Description:
The Klein Tools 1628-17 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE162817
UPC
092644470325
Manufacturer Part Number
1628-17
Manufacturer
Klein Tools
Grip for High Strength Cables 0.5 to 0.75-Inch
MFG #1628-17
Product Description:
The Klein Tools 1628-17 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE162817
UPC
092644470325
Manufacturer Part Number
1628-17
Manufacturer
Klein Tools
$1,045.20Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Used for Aircraft, EHS, Messenger, Guy Strand cables
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Designed for 0.50 to 0.75-Inch (12.7 to 19.05 mm) diameter cable sizes with max safe load of 15,000-Pound (6803 kg)
- Do not exceed rated capacity.
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Always match proper size and type of grip to application.
- For larger conductors, see our grips with round inside-jaw contour
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Specifications
| Jaw Type | :Â Â | Double V |
| Jaw Length | :Â Â | 7.25" (18.4 cm) |
| Cable Type | :Â Â | Aircraft, EHS, Messenger, Guy Strand |
| Type | :Â Â | Chicago Grip |
| Application | :Â Â | Extra-High-Strength Cables, Messenger, Guy Strand |
| Maximum Safe Load | :Â Â | 15,000 lb (6803 kg) |
| Cable Diameter | :Â Â | 0.5" to 0.75" (12.7 to 19.05 mm) |
| Weight | :Â Â | 14.6 lb (6.6 kg) |
| Locking Handle | :Â Â | Yes |
| Hot Latch | :Â Â | No |
| Spring | :Â Â | No |
| Swing Latch | :Â Â | No |
| Accessories | :Â Â | 25450 |
| Item Height | :Â Â | 2.7000 in |
| Item Width | :Â Â | 6.3000 in |
| Item Depth | :Â Â | 12.6000 in |
| Item Weight | :Â Â | 14.6250 lbs |
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Used for Aircraft, EHS, Messenger, Guy Strand cables
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Designed for 0.50 to 0.75-Inch (12.7 to 19.05 mm) diameter cable sizes with max safe load of 15,000-Pound (6803 kg)
- Do not exceed rated capacity.
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Always match proper size and type of grip to application.
- For larger conductors, see our grips with round inside-jaw contour
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Specifications
Jaw Type :Â Â Double V Jaw Length :Â Â 7.25" (18.4 cm) Cable Type :Â Â Aircraft, EHS, Messenger, Guy Strand Type :Â Â Chicago Grip Application :Â Â Extra-High-Strength Cables, Messenger, Guy Strand Maximum Safe Load :Â Â 15,000 lb (6803 kg) Cable Diameter :Â Â 0.5" to 0.75" (12.7 to 19.05 mm) Weight :Â Â 14.6 lb (6.6 kg) Locking Handle :Â Â Yes Hot Latch :Â Â No Spring :Â Â No Swing Latch :Â Â No Accessories :Â Â 25450 Item Height :Â Â 2.7000 in Item Width :Â Â 6.3000 in Item Depth :Â Â 12.6000 in Item Weight :Â Â 14.6250 lbs - Downloads
Spec SheetInstructionsInstructions 2
