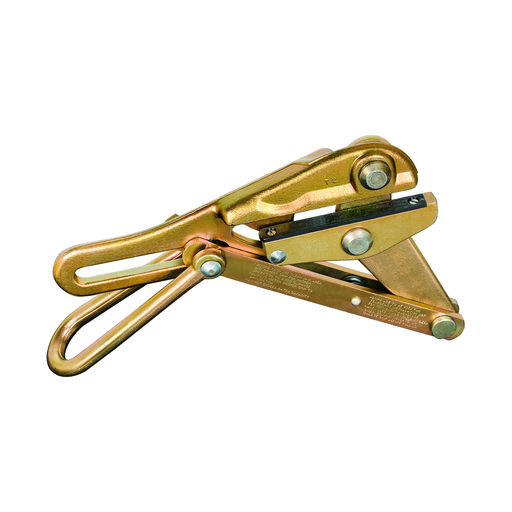

Grip for High Strength Cable
MFG #1684-5F
$738.26Â /Â E
Each
Each
Product Description:
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
HESCO Part Number
KLE16845F
UPC
092644479465
Manufacturer Part Number
1684-5F
Manufacturer
Klein Tools
Grip for High Strength Cable
MFG #1684-5F
$738.26Â /Â E
Each
Each
Product Description:
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
HESCO Part Number
KLE16845F
UPC
092644479465
Manufacturer Part Number
1684-5F
Manufacturer
Klein Tools
Grip for High Strength Cable
MFG #1684-5F
Product Description:
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
HESCO Part Number
KLE16845F
UPC
092644479465
Manufacturer Part Number
1684-5F
Manufacturer
Klein Tools
$738.26Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Double "V" grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Do not exceed rated capacity.
- For larger conductors, see our grips with round inside-jaw contour
- Always match proper size and type of grip to application.
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
- Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
Specifications
| Application | :Â Â | Wire Pulling |
| Cable Type | :Â Â | Aircraft, EHS, Messenger, Guy Strand |
| Special Features | :Â Â | Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573) |
| Jaw Type | :Â Â | Single V with File Insert |
| Jaw Length | :Â Â | 5" (12.7 cm) |
| Type | :Â Â | Chicago Grip |
| Maximum Safe Load | :Â Â | 8000 lb (3629 kg) |
| Cable Diameter | :Â Â | 0.16" to 0.55" (4.06 to 13.97 mm) |
| Weight | :Â Â | 6.4 lb (2.9 kg) |
| Locking Handle | :Â Â | Yes |
| Hot Latch | :Â Â | No |
| Spring | :Â Â | Yes |
| Swing Latch | :Â Â | No |
| Replacement Parts | :Â Â | 570, 573, 578 |
| Accessories | :Â Â | 25450 |
| Item Height | :Â Â | 1.7600 in |
| Item Width | :Â Â | 6.5000 in |
| Item Depth | :Â Â | 9.2500 in |
| Item Weight | :Â Â | 6.3750 lbs |
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Double "V" grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Do not exceed rated capacity.
- For larger conductors, see our grips with round inside-jaw contour
- Always match proper size and type of grip to application.
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
- Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
Specifications
Application :Â Â Wire Pulling Cable Type :Â Â Aircraft, EHS, Messenger, Guy Strand Special Features :Â Â Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573) Jaw Type :Â Â Single V with File Insert Jaw Length :Â Â 5" (12.7 cm) Type :Â Â Chicago Grip Maximum Safe Load :Â Â 8000 lb (3629 kg) Cable Diameter :Â Â 0.16" to 0.55" (4.06 to 13.97 mm) Weight :Â Â 6.4 lb (2.9 kg) Locking Handle :Â Â Yes Hot Latch :Â Â No Spring :Â Â Yes Swing Latch :Â Â No Replacement Parts :Â Â 570, 573, 578 Accessories :Â Â 25450 Item Height :Â Â 1.7600 in Item Width :Â Â 6.5000 in Item Depth :Â Â 9.2500 in Item Weight :Â Â 6.3750 lbs - Downloads
Spec SheetInstructionsInstructions 2Instructions 3
