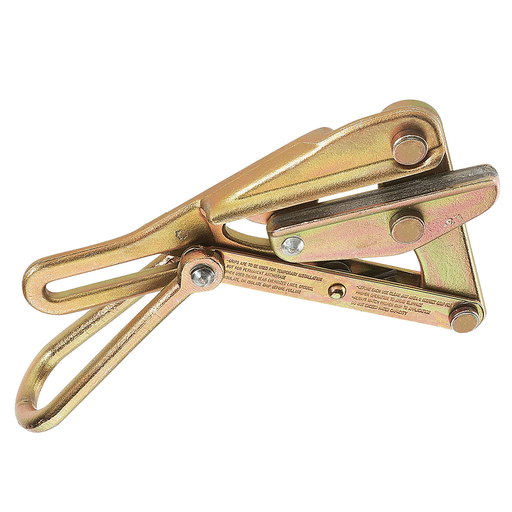

Grip for High Strength Cables 0.218-Inch
MFG #1692-5
Requires Quote
 / EACH
Product Description:
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.
HESCO Part Number
KLE16925
UPC
092644471834
Manufacturer Part Number
1692-5
Manufacturer
Klein Tools
Grip for High Strength Cables 0.218-Inch
MFG #1692-5
Product Description:
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.
HESCO Part Number
KLE16925
UPC
092644471834
Manufacturer Part Number
1692-5
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm)
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Do not exceed rated capacity.
- For larger conductors, see our grips with round inside-jaw contour
- Always match proper size and type of grip to application.
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
Specifications
| Cable Type | :Â Â | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | :Â Â | 0.218" to 0.55" (5.54 to 13.97 mm) |
| Maximum Safe Load | :Â Â | 8000 lb (3629 kg) |
| Type | :Â Â | Chicago Grip |
| Jaw Type | :Â Â | Double V |
| Material | :Â Â | Steel |
| Application | :Â Â | Wire Pulling |
| Jaw Length | :Â Â | 5" (12.7 cm) |
| Locking Handle | :Â Â | Yes |
| Hot Latch | :Â Â | No |
| Spring | :Â Â | Yes |
| Swing Latch | :Â Â | No |
| Teeth Type | :Â Â | Smooth |
| Height | :Â Â | 2.2500 in |
| Width | :Â Â | 5.4000 in |
| Depth | :Â Â | 9.6750 in |
| Weight | :Â Â | 5.4360 lbs |
