#2 Insulated Screwdriver with 7-Inch Shank
MFG #662-7-INS
Requires Quote
 / EACH
Product Description:

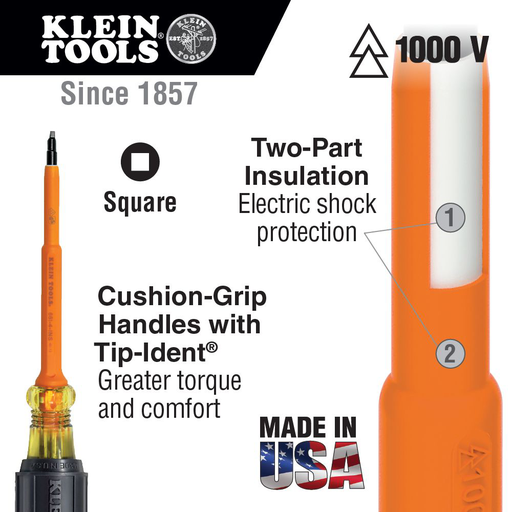

Klein insulated tools combine excellent functionality along with reduction of risk of injury where a tool might make contact with an energized source with voltage up to 1000 volts. Two layers of insulation provide protection against electric shock. Clearly marked with the official 1000-volt rating symbol. Round shank with square-recess tip.
HESCO Part Number
KLE6627INS
UPC
092644851193
Manufacturer Part Number
662-7-INS
Manufacturer
Klein Tools
#2 Insulated Screwdriver with 7-Inch Shank
MFG #662-7-INS
Product Description:
Klein insulated tools combine excellent functionality along with reduction of risk of injury where a tool might make contact with an energized source with voltage up to 1000 volts. Two layers of insulation provide protection against electric shock. Clearly marked with the official 1000-volt rating symbol. Round shank with square-recess tip.
HESCO Part Number
KLE6627INS
UPC
092644851193
Manufacturer Part Number
662-7-INS
Manufacturer
Klein Tools
Requires Quote
 / EACH
- Features
- Specifications
- Resources
- 1000V Rated for safety
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Durable two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Cushion-Grip handle for greater torque and comfort
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Custom US-made steel tool
- Wear approved eye protection.
- Made in the USA
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Flame Retardant and Impact Resistant Handle
- Do NOT use to pry or chisel.
- Cushion-Grip™ handle for greater torque and comfort
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
Specifications
| Country of Origin | :Â Â | United States |
| Style Name | :Â Â | #2 Square Recess Tip |
| Size Name | :Â Â | 7-Inch Shank |
| Item | :Â Â | Square-Recess |
| Overall Length | :Â Â | 11.313" (28.7 cm) |
| Handle Color | :Â Â | Black |
| Shank Type | :Â Â | Round |
| Standard | :Â Â | IEC 60900 and ASTM F1505 |
| Magnetic | :Â Â | No |
| Handle Material | :Â Â | High-Dielectric Plastic |
| Insulated | :Â Â | Yes |
| Material | :Â Â | Induction Hardened Steel |
| Type | :Â Â | Recessed |
| Color Code | :Â Â | Red |
| Shank Length | :Â Â | 7" (17.8 cm) |
| Application | :Â Â | For Work Near Energized Sources |
| Tip Type | :Â Â | Square |
| Tip Size | :Â Â | #2 |
| Height | :Â Â | 1.0000 in |
| Width | :Â Â | 1.0000 in |
| Depth | :Â Â | 11.3130 in |
| Weight | :Â Â | 0.2000 lbs |
- 1000V Rated for safety
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Durable two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Cushion-Grip handle for greater torque and comfort
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Custom US-made steel tool
- Wear approved eye protection.
- Made in the USA
- Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
- Flame Retardant and Impact Resistant Handle
- Do NOT use to pry or chisel.
- Cushion-Grip™ handle for greater torque and comfort
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
Specifications
Country of Origin :Â Â United States Style Name :Â Â #2 Square Recess Tip Size Name :Â Â 7-Inch Shank Item :Â Â Square-Recess Overall Length :Â Â 11.313" (28.7 cm) Handle Color :Â Â Black Shank Type :Â Â Round Standard :Â Â IEC 60900 and ASTM F1505 Magnetic :Â Â No Handle Material :Â Â High-Dielectric Plastic Insulated :Â Â Yes Material :Â Â Induction Hardened Steel Type :Â Â Recessed Color Code :Â Â Red Shank Length :Â Â 7" (17.8 cm) Application :Â Â For Work Near Energized Sources Tip Type :Â Â Square Tip Size :Â Â #2 Height :Â Â 1.0000 in Width :Â Â 1.0000 in Depth :Â Â 11.3130 in Weight :Â Â 0.2000 lbs - Downloads
