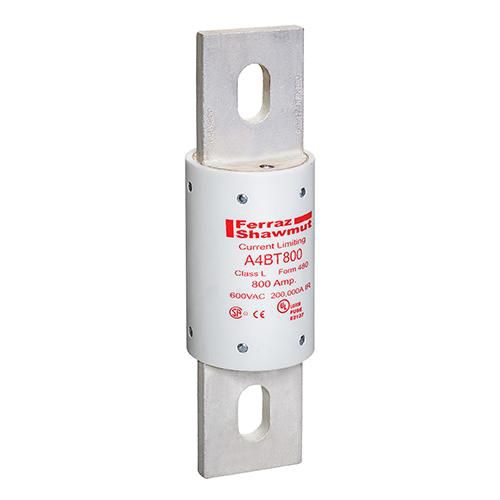

Fuse Amp-Trap® 600V 800A Time-Delay Class L A4BT Series
MFG #A4BT800
$1,538.66 / E
EACH
EACH
Product Description:
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.
HESCO Part Number
MERA4BT800
UPC
782001939908
Manufacturer Part Number
A4BT800
Manufacturer
Mersen
Fuse Amp-Trap® 600V 800A Time-Delay Class L A4BT Series
MFG #A4BT800
Product Description:
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.
HESCO Part Number
MERA4BT800
UPC
782001939908
Manufacturer Part Number
A4BT800
Manufacturer
Mersen
$1,538.66 / E
EACH
EACH
- Features
- Specifications
- Resources
- UL Listed to Standard 248-10, File E2137
- Unique dimensions prevent replacement by other fuse classes.
- Motors
- CSA Certified to Standard C22.2, No. 248.68
- Blade-stamped catalog numbers for permanent identification
- Motor controllers
- Self-certified for DC per UL248 (601-2000)
- Glass melamine body and plated terminals provide superior reliability in harsh environments
- Transformers
- Mains
- Feeders
Packaging Dimensions
Sell Pack Quantity | : | 1 Each |
Sell Pack Weight | : | 4.15 lb |
Sell Pack Width | : | 2.5 in |
Sell Pack Length | : | 8.75 in |
Sell Pack Height | : | 2.38 in |
Specifications | ||
Rated voltage AC UL | : | 600 V |
Rated voltage DC UL | : | 500 V |
Frequency | : | 50/60 Hz |
Ampere Rating | : | 800 A |
ROHS Compliant | : | Yes |
Fuse Class | : | Class L |
Speed/Characteristic | : | Time Delay |
Mounting | : | Bolted |
AC Max I.R./Breaking Capacity: I1 | : | 200 kA |
Connection/Terminal Material | : | Silver-Plated Copper |
Connection/Terminal Type | : | Blade |
Body/Insulating Material | : | GMG |
Product Dimensions | ||
Product Weight | : | 3.95 lb |
Product Diameter | : | 3 in |
Product Length | : | 8.63 in |
- UL Listed to Standard 248-10, File E2137
- Unique dimensions prevent replacement by other fuse classes.
- Motors
- CSA Certified to Standard C22.2, No. 248.68
- Blade-stamped catalog numbers for permanent identification
- Motor controllers
- Self-certified for DC per UL248 (601-2000)
- Glass melamine body and plated terminals provide superior reliability in harsh environments
- Transformers
- Mains
- Feeders
Packaging Dimensions
Sell Pack Quantity : 1 Each Sell Pack Weight : 4.15 lb Sell Pack Width : 2.5 in Sell Pack Length : 8.75 in Sell Pack Height : 2.38 in Specifications
Rated voltage AC UL : 600 V Rated voltage DC UL : 500 V Frequency : 50/60 Hz Ampere Rating : 800 A ROHS Compliant : Yes Fuse Class : Class L Speed/Characteristic : Time Delay Mounting : Bolted AC Max I.R./Breaking Capacity: I1 : 200 kA Connection/Terminal Material : Silver-Plated Copper Connection/Terminal Type : Blade Body/Insulating Material : GMG Product Dimensions
Product Weight : 3.95 lb Product Diameter : 3 in Product Length : 8.63 in - Downloads
Spec Sheet
Spec Sheet FR
Drawings
Curves 1
Curves 2
