ABM100-S6-C69 Cable Tie Mount, Ivory, V-0 PA 6.6, # 6 Screw, 1"x1"
MFG #ABM100-S6-C69
$1.87 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

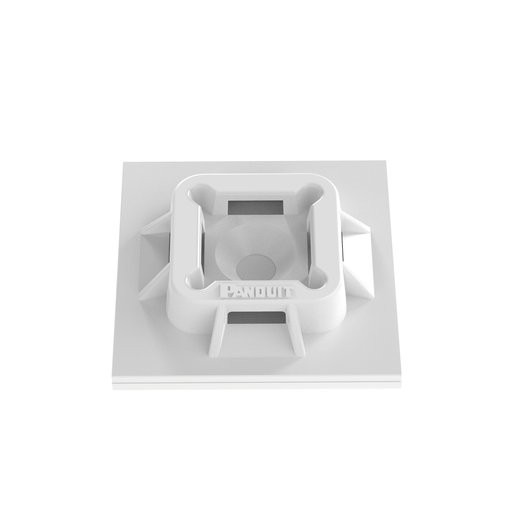

Panduit’s ABM100-S6-C69 4-Way Cable Tie Mounts allow cable tie entry from all four sides. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easily be applied with user supplied adhesive or size #6 (M3) screws. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are 1" long x 1" wide (25.4mm x 25.4mm), are ivory in color and come in packages of 100.
HESCO Part Number
PANABM100S6C69
UPC
074983281091
Manufacturer Part Number
ABM100-S6-C69
Manufacturer
Panduit
ABM100-S6-C69 Cable Tie Mount, Ivory, V-0 PA 6.6, # 6 Screw, 1"x1"
MFG #ABM100-S6-C69
Product Description:
Panduit’s ABM100-S6-C69 4-Way Cable Tie Mounts allow cable tie entry from all four sides. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easily be applied with user supplied adhesive or size #6 (M3) screws. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are 1" long x 1" wide (25.4mm x 25.4mm), are ivory in color and come in packages of 100.
HESCO Part Number
PANABM100S6C69
UPC
074983281091
Manufacturer Part Number
ABM100-S6-C69
Manufacturer
Panduit
$1.87 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, RoHS Compliant
- No
Packaging Details
| UPC | : | 07498328109 |
| GTIN Package | : | 00074983281091 |
| Standard Package Volume Ft3 | : | 0.0420 |
| Standard Package Weight Pounds | : | 0.3100 |
| Std Package Height In | : | 1.7 |
| Std Package Height MM | : | 43.18 |
| Std Package Length In | : | 6.95 |
| Std Package Length MM | : | 176.53 |
| Std Package Width In | : | 5.65 |
| Std Package Width MM | : | 143.51 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983281096 |
| Standard Carton Volume Ft3 | : | 0.4196 |
| Standard Carton Weight Pounds | : | 3.1000 |
| Std Carton Height In | : | 7.15 |
| Std Carton Height MM | : | 181.61 |
| Std Carton Length In | : | 10.85 |
| Std Carton Length MM | : | 275.59 |
| Std Carton Width In | : | 9.3 |
| Std Carton Width MM | : | 236.22 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983281091 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 96,000 |
| Pallet Volume | : | 40.283433 |
| Pallet Weight | : | 297.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°F) | : | 212 |
| Overall Height (In.) | : | 0.2 |
| Overall Length (mm) | : | 25.4 |
| Material | : | Nylon 6.6 |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Mount Method | : | Screw-On |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Length (In.) | : | 1 |
| Minimum Operating Temperature (°C) | : | -60 |
| Environment | : | Indoor |
| Mounting Hole Thread Size | : | #6 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Overall Height (mm) | : | 5.1 |
| Color | : | Ivory |
| Resistance Properties | : | Flame-Retardant |
| Overall Width (In.) | : | 1 |
| Overall Width (mm) | : | 50.3 |
| Maximum Operating Temperature (°C) | : | 100 |
| Product Type | : | Cable Tie Mount |
| Material Description | : | Nylon 6.6 (Flame-Retardant) |
Videos 1
- Standards Met: CE Compliant, RoHS Compliant
- No
Packaging Details
UPC : 07498328109 GTIN Package : 00074983281091 Standard Package Volume Ft3 : 0.0420 Standard Package Weight Pounds : 0.3100 Std Package Height In : 1.7 Std Package Height MM : 43.18 Std Package Length In : 6.95 Std Package Length MM : 176.53 Std Package Width In : 5.65 Std Package Width MM : 143.51 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983281096 Standard Carton Volume Ft3 : 0.4196 Standard Carton Weight Pounds : 3.1000 Std Carton Height In : 7.15 Std Carton Height MM : 181.61 Std Carton Length In : 10.85 Std Carton Length MM : 275.59 Std Carton Width In : 9.3 Std Carton Width MM : 236.22 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983281091 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 96,000 Pallet Volume : 40.283433 Pallet Weight : 297.6000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Operating Temperature (°F) : 212 Overall Height (In.) : 0.2 Overall Length (mm) : 25.4 Material : Nylon 6.6 Application : Used with Miniature, Intermediate, and Standard Cables Ties Mount Method : Screw-On Minimum Operating Temperature (°F) : -76 Overall Length (In.) : 1 Minimum Operating Temperature (°C) : -60 Environment : Indoor Mounting Hole Thread Size : #6 For Use With : Miniature, Intermediate, Standard Cross-Section Ties Overall Height (mm) : 5.1 Color : Ivory Resistance Properties : Flame-Retardant Overall Width (In.) : 1 Overall Width (mm) : 50.3 Maximum Operating Temperature (°C) : 100 Product Type : Cable Tie Mount Material Description : Nylon 6.6 (Flame-Retardant) - Part Drawings
